Acta Chimica Sinica ›› 2026, Vol. 84 ›› Issue (1): 101-108.DOI: 10.6023/A25080273 Previous Articles     Next Articles

Article

低温自还原法制备UVA荧光粉(Ba[B8O11(OH)4]:Eu2+)

梁攀*(), 张雨欣, 史欣蕊, 李飒英, 李连庆, 张宏淑, 薛颖颖, 姜志洁, 赵洋

  1. 陕西学前师范学院 生物食品与化学学院 陕西西安 710100
  • 投稿日期:2025-08-06 发布日期:2025-10-14
  • 基金资助:
    国家自然科学基金青年项目(22003035); 陕西省科技新星项目(2023KJXX-076); 陕西学前师范学院创新团队和国家级大创项目(202314390018)

Preparation of Ba[B8O11(OH)4]:Eu2+ High Efficiency UVA Phosphor by Low-temperature Self-reduction Method

Pan Liang*(), Yuxin Zhang, Xinrui Shi, Saying Li, Lianqing Li, Hongshu Zhang, Yingying Xue, Zhijie Jiang, Yang Zhao

  1. College of Biology, Food and Chemistry, Shaanxi Xueqian Normal University, Xi'an 710100, China
  • Received:2025-08-06 Published:2025-10-14
  • Contact: * E-mail: liangpan@snnu.edu.cn
  • Supported by:
    National Natural Science Foundation of China(22003035); Shaanxi Science and Technology Young Star Project(2023KJXX-076); Innovation Team of Shaanxi Xueqian Normal University, and the National Training Program of Innovation and Entrepreneurship for Undergraduates(202314390018)

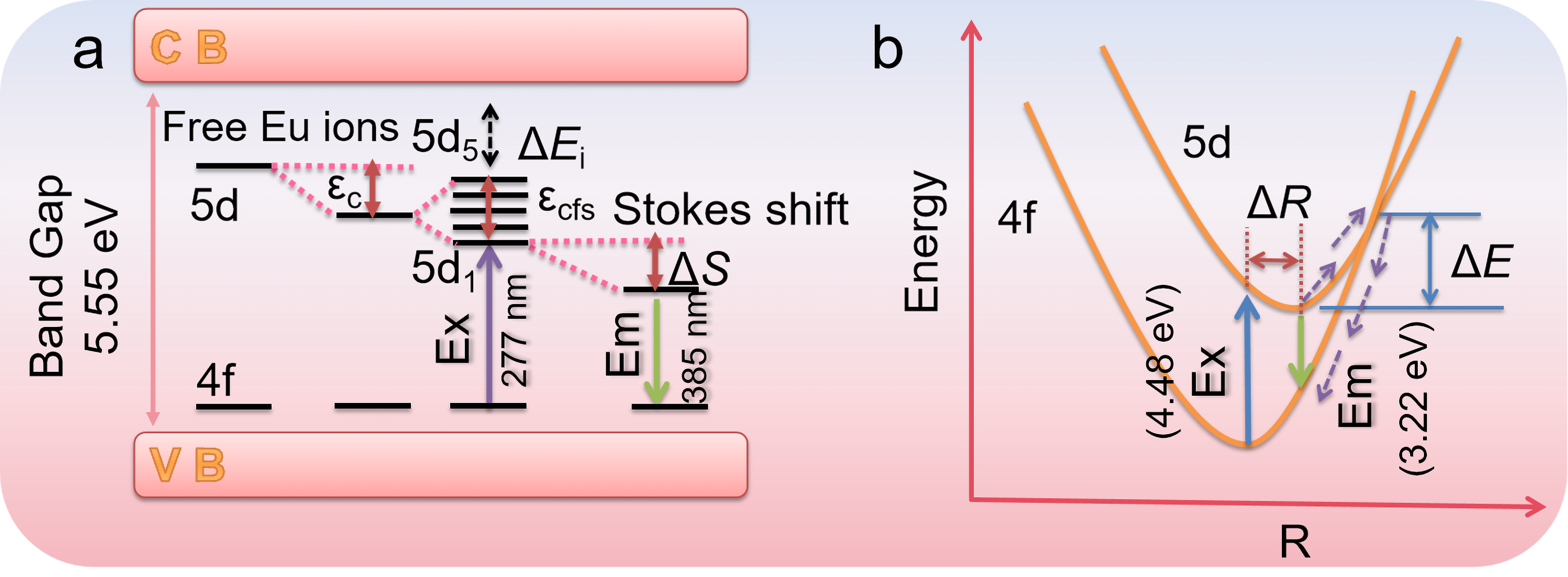

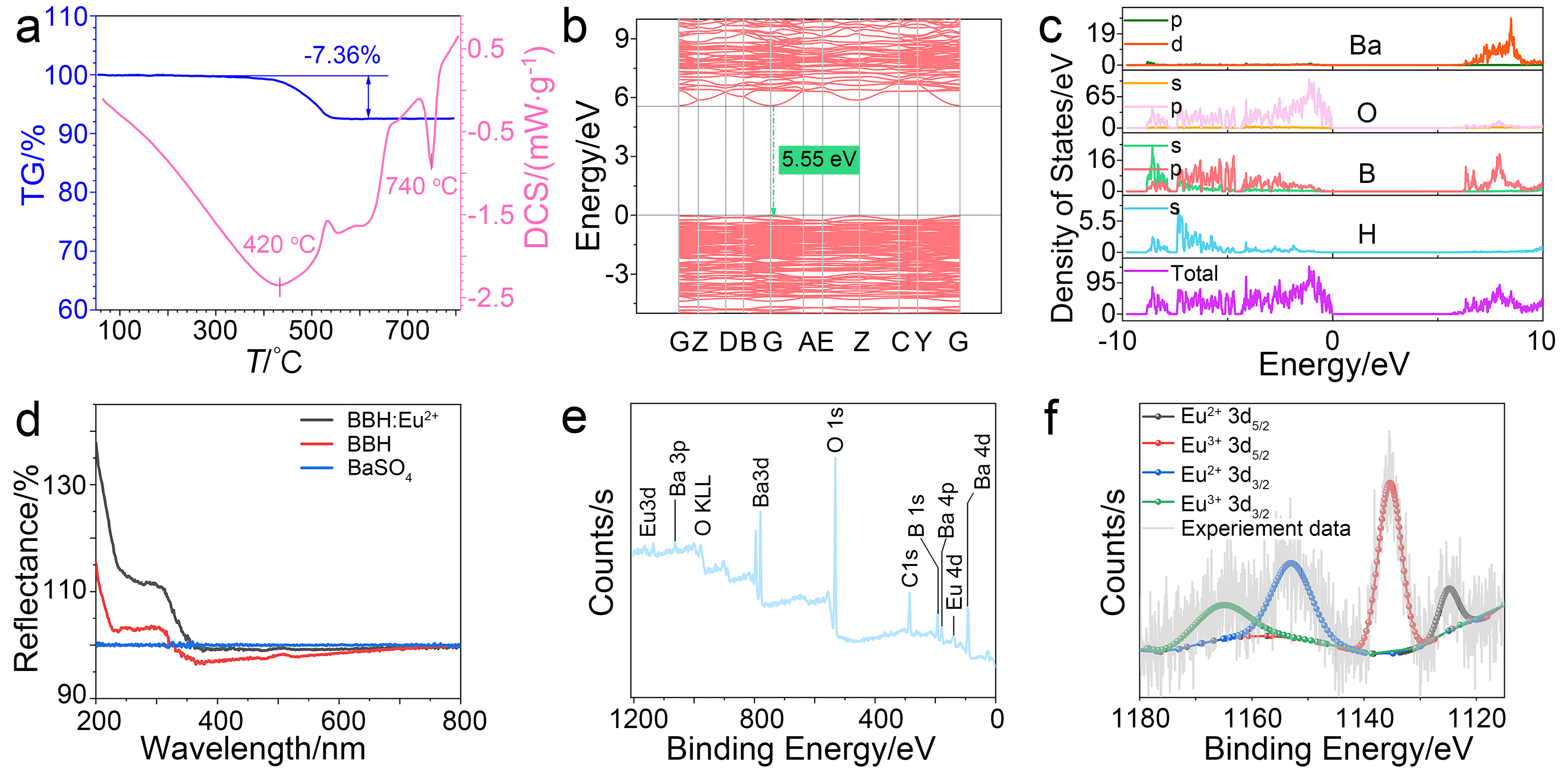

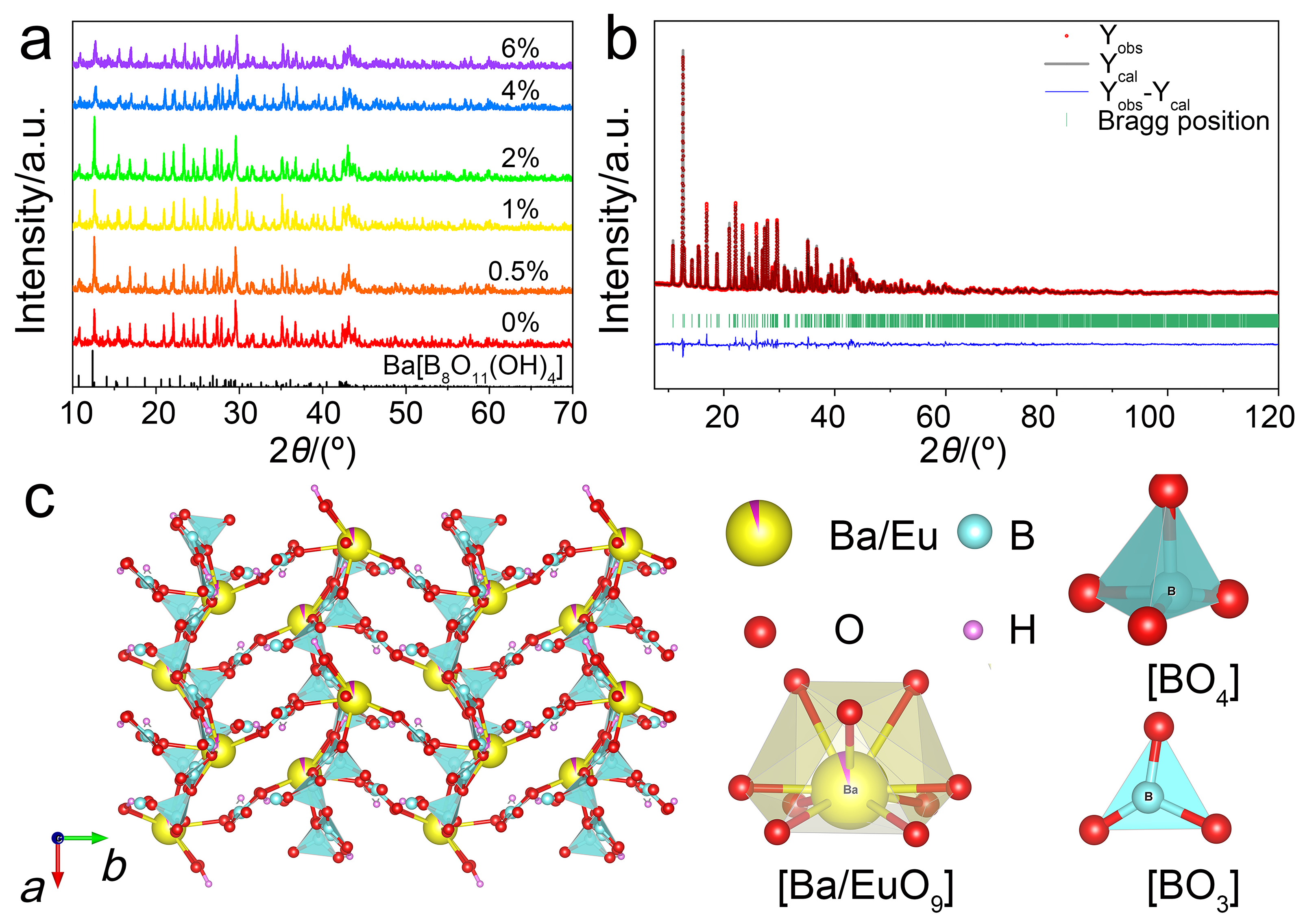

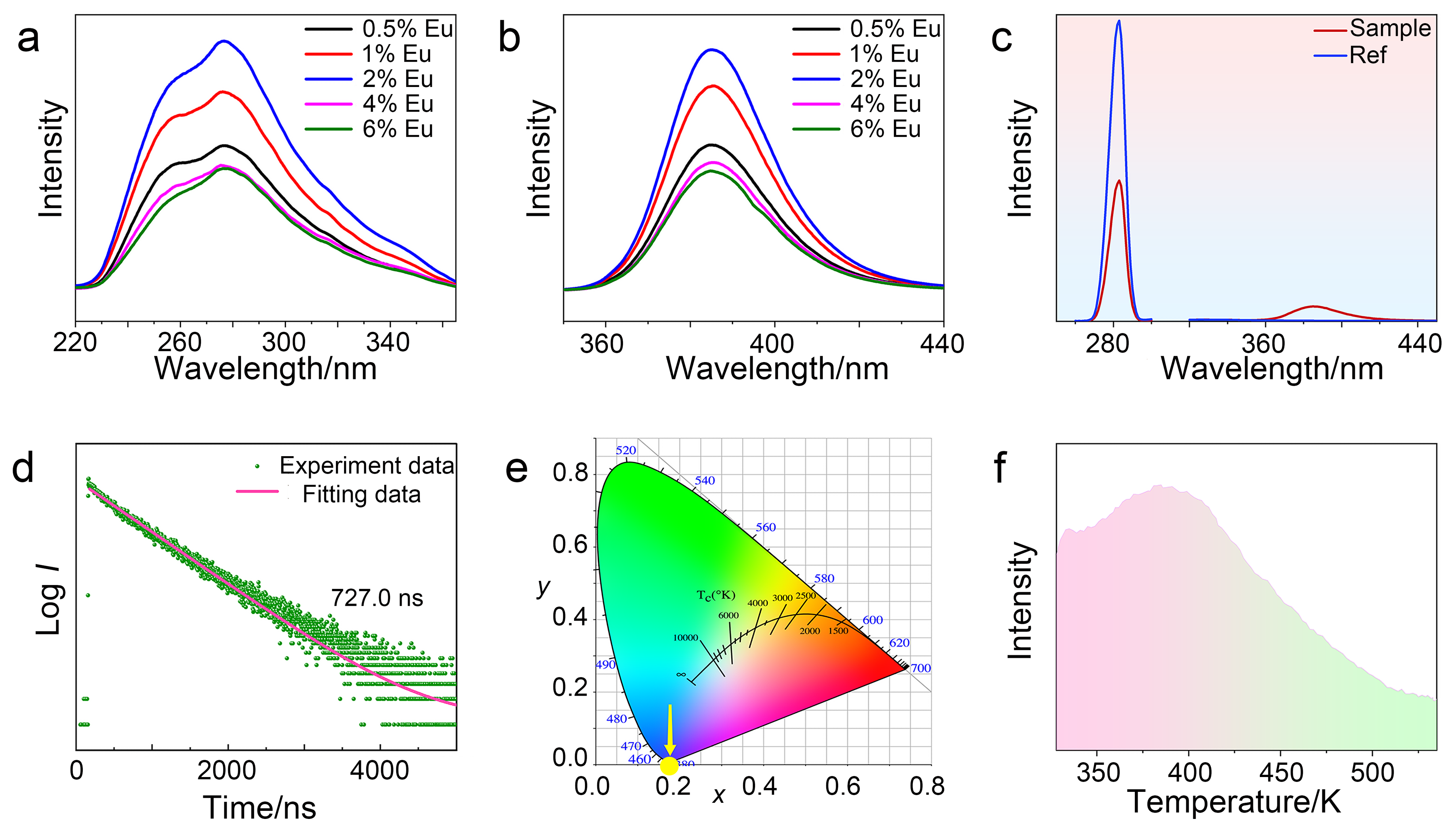

In this study, a novel narrow-band long-wave ultraviolet (UVA) phosphor, Ba[B8O11(OH)4]: Eu2+ (BBH:Eu2+), was synthesized via a low-temperature self-reduction method. The structural and luminescent properties of the phosphor were systematically characterized using X-ray diffraction (XRD), scanning electron microscopy (SEM), X-ray photoelectron spectroscopy (XPS), thermogravimetric analysis (TGA), diffuse reflectance spectroscopy (DR), density functional theory (DFT) calculations, photoluminescence spectra (PL), thermoluminescence spectra (TL), and decay time curves (DT). The SEM results revealed that the phosphor exhibits a well-defined hexagonal plate-like morphology with dimensions of approximately 1.39±0.31 μm in length and 0.68±0.17 μm in width. The DR experimental results demonstrate that BBH exhibits high reflectivity in the ultraviolet region. DFT calculations indicate that this material is a direct-bandgap semiconductor with a bandgap energy of 5.55 eV. TGA results indicate that the thermal decomposition of BBH occurs at 420 ℃. The excitation spectrum of BBH:Eu2+ features a broad peak between 200 to 360 nm, peaking at 277 nm, while the emission spectrum spans from 300 to 420 nm, peaking at 385 nm with a full width at half maximum (FWHM) of 35 nm, exhibiting typical narrow-band UVA emission features. The quantum yield of BBH:2%Eu2+ was determined to be 34.6%, and the corresponding decay time was measured as 727 ns. When the temperature increased to 100 ℃, the luminescence intensity of BBH:2%Eu2+ decreased to 48.9% of its initial value at room temperature, indicating relatively poor thermal stability. The underlying cause can be attributed to the material's large Stokes shift, which reaches 10127 cm-1 (108 nm). This large Stokes shift significantly enhances the electron-phonon coupling effect, thereby negatively impacting thermal stability. The observed thermal quenching behavior is primarily governed by the thermally activated cross-relaxation mechanism. Based on the XPS and TL data, the self-reduction mechanism of Eu3+ within the BBH matrix was elucidated. This research not only introduces a new approach for synthesizing Eu2+-activated phosphors but also successfully develops a high-performance UVA narrow-band phosphor with significant potential for applications in anti-counterfeiting, medical diagnostics, and other fields.

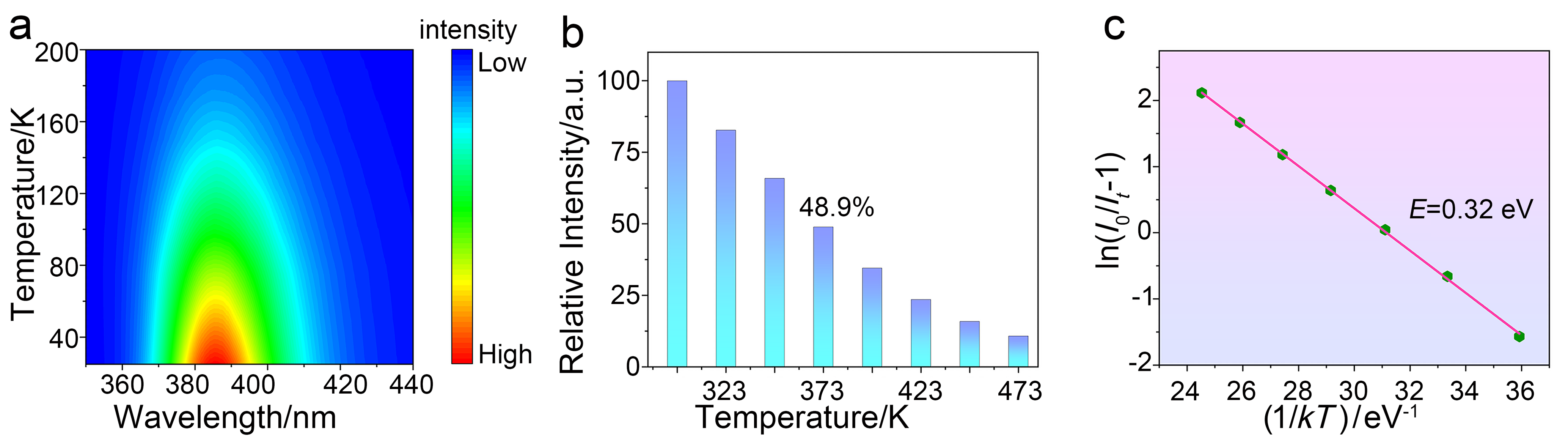

Key words: UVA phosphor, low-temperature self-reduction method, Ba[B8O11(OH)4]:Eu2+, thermal quenching mechanism
