化学学报 上一篇    下一篇

研究论文

(FeCoNiZn)Al2O4/ZnIn2S4肖特基型光催化剂析氢耦合苯甲醛制备性能研究

徐稙清a,b, 闫爱华c, 苏自高b, 黄飞*,a,b, 冯善航c, 廖文欣c, 刘鸿明c, 谢浩然c, 李楠c, 惠博磊c

  1. a中国矿业大学 江苏省碳捕集利用与封存重点实验室 碳中和研究院 徐州 221008;
    b中国矿业大学 材料与物理学院 徐州 221116;
    c中国矿业大学 低碳能源与动力工程学院 徐州 221116
  • 投稿日期:2026-08-13
  • 通讯作者: *E-mail: huangfei7804@163.com; Tel.: 0516-83883501; Fax: 0516-83883501
  • 基金资助:
    国家自然科学基金青年基金(批准号:52002399); 徐州市科技计划面上项目(批准号:KC21025); 江苏省研究生科研实践创新项目(批准号:26CXJH4984).

Study of Schottky-Type (FeCoNiZn)Al2O4/ZnIn2S4 Photocatalysts for Hydrogen Production Coupled with Benzaldehyde Generation Performance

Xu Zhiqinga,b, Yan Aihuac, Su Zigaob, Huang Fei*,a,b, Feng Shanhangc, Liao Wenxinc, Liu Hongmingc, Xie Haoranc, Li Nanc, Hui Boleic

  1. aJangsu Key Laboratory of Carbon Capture, Utilization and Storage, Carbon Neutrality Institute, China University of Mining and Technology, Xuzhou 221008, China;
    bSchool of Materials and Physics, China University of Mining and Technology, Xuzhou 221116, China;
    cSchool of Low-Carbon Energy and Power Engineering, China University of Mining and Technology, Xuzhou 221116, China
  • Received:2026-08-13
  • Supported by:
    National Natural Science Foundation of China(No. 52002399), Xuzhou Science and Technique Program (No. KC21025), and Postgraduate Research & Practice Innovation Program of Jiangsu Province (No. 26CXJH4984).

本研究采用水热/热处理两步法合成了(FeCoNiZn)Al2O4 (FCNZA)中熵助催化材料,并在随后的水浴条件下将其负载于ZnIn2S4 (ZIS)表面,成功构筑FCNZA/ZIS复合材料,详细研究了复合体系物相组成、形貌结构、分子结构、界面结构、能带结构等对光催化析氢耦合苯甲醇氧化性能的影响规律。结果表明:负载FCNZA后,在界面成功构建了金属-硫键,形成了紧密的化学耦合界面;可见光驱动光催化测试显示,最佳样品FCNZA-2.0/ZIS的产氢速率达到18.43 mmol·g-1·h-1,约为纯相ZIS的13.96倍;苯甲醛(BAD)产生速率达到12.35 mmol·g-1·h-1,约为纯相ZIS的10.74倍;最优样品表现出良好的光稳定性,四次循环测试后仍能保持初始光催化活性的92.16%;光电化学测试和能带计算证实,FCNZA中熵助催化剂有效提升了ZIS光子利用效率,促进了光生载流子分离效率与电荷迁移,最终提升了双功能光催化性能。

关键词: 中熵材料, ZnIn2S4, 界面耦合, 光催化析氢, 苯甲醛制备

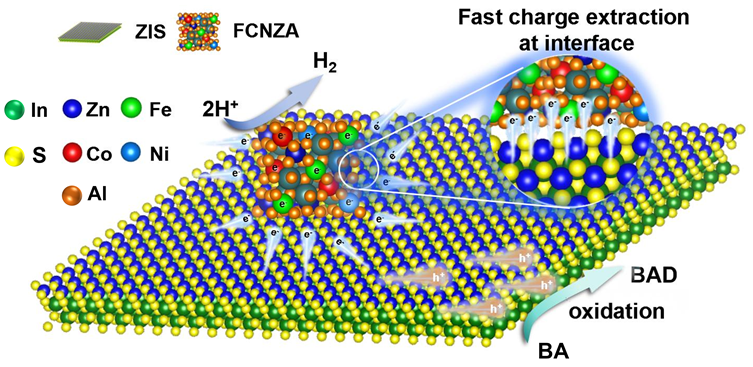

Photocatalytic hydrogen production provides a promising route for converting solar energy into green hydrogen fuels. However, the practical application is often limited by its rapid carrier recombination and sluggish redox dynamics. Coupling hydrogen evolution with the selective oxidation of organic chemicals offers an attractive strategy to simultaneously utilize photogenerated electrons and photogenerated holes, thereby improving solar-energy utilization while producing value-added chemicals. Herein, medium-entropy (FeCoNiZn)Al2O4 (FCNZA) cocatalysts were introduced onto ZIS nanosheets to construct Schottky-type FCNZA/ZIS junctions for enhanced photocatalytic hydrogen reduction coupled with benzyl alcohol oxidation. Comprehensive structural characterization confirmed the successful coupling of FCNZA with ZIS while retaining the original crystal structures of the two components. More importantly, Fe-S, Co-S, and Ni-S bonds formed at the FCNZA/ZIS interface, which was favorable for the interfacial charge migration. Consequently, under visible-light irradiation, the optimal FCNZA-2.0/ZIS delivered a hydrogen evolution rate of 18.43 mmol·g-1·h-1, representing a 13.96-fold enhancement compared with pure ZIS. Meanwhile, the benzaldehyde production rate reached 12.35 mmol·g-1·h-1, which was 10.74 times that of pure ZIS. Such results demonstrated the simultaneous enhancement of the reduction-side and oxidation-side reactions. The apparent quantum efficiency (AQE) of FCNZA-2.0/ZIS reached 62.10% at 350 nm and 11.90% at 420 nm. In addition, the composite retained 92.16% of its initial photocatalytic activity after four consecutive cycles, confirming its good photostability. Photoelectrochemical measurements, spectroscopic characterization and band-structure analyses revealed that the enhanced photocatalytic performance originated from the synergistic effects of the medium-entropy cocatalyst, Schottky contact, and chemically-bonded interface. Upon contact, interfacial charge redistribution between ZIS and FCNZA established a Schottky contact that facilitated the directional migration and rapid electron extraction from ZIS to FCNZA. Meanwhile, the chemically-coupled interface provided efficient charge-transfer pathways, thereby suppressing electron-hole recombination. The transferred electrons participated in subsequent proton reduction for H2 evolution, whereas the holes remaining in ZIS drived the selective oxidation of benzyl alcohol to benzaldehyde. This work demonstrates an effective strategy of medium-entropy cocatalysts to enhance the solar-energy utilization and provides an insight into the rational construction of Schottky-type contact for efficient photocatalytic hydrogen production coupled with value-added chemicals generation.

Key words: Medium-entropy materials, ZnIn2S4, Interface coupling, Photocatalytic hydrogen production, Benzaldehyde generation
