化学学报 上一篇    下一篇

研究论文

Pd2L4型配位笼配体骨架结构与识别及催化性能之间的构效关系

张路梅, 张琦*

  1. 四川大学 化学学院 四川成都 610064
  • 投稿日期:2026-02-10
  • 基金资助:
    国家自然科学基金(No. 22171192)资助.

Structure-activity relationship between the ligand backbone of Pd₂L₄-type coordination cages and their recognition and catalytic properties

Zhang Lu-Mei, Zhang Qi*

  1. College of Chemistry, Sichuan University, Chengdu 610064
  • Received:2026-02-10
  • Contact: *E-mail: qi.zhang.ch@scu.edu.cn
  • Supported by:
    Project National Natural Science Foundation of China (No. 22171192)

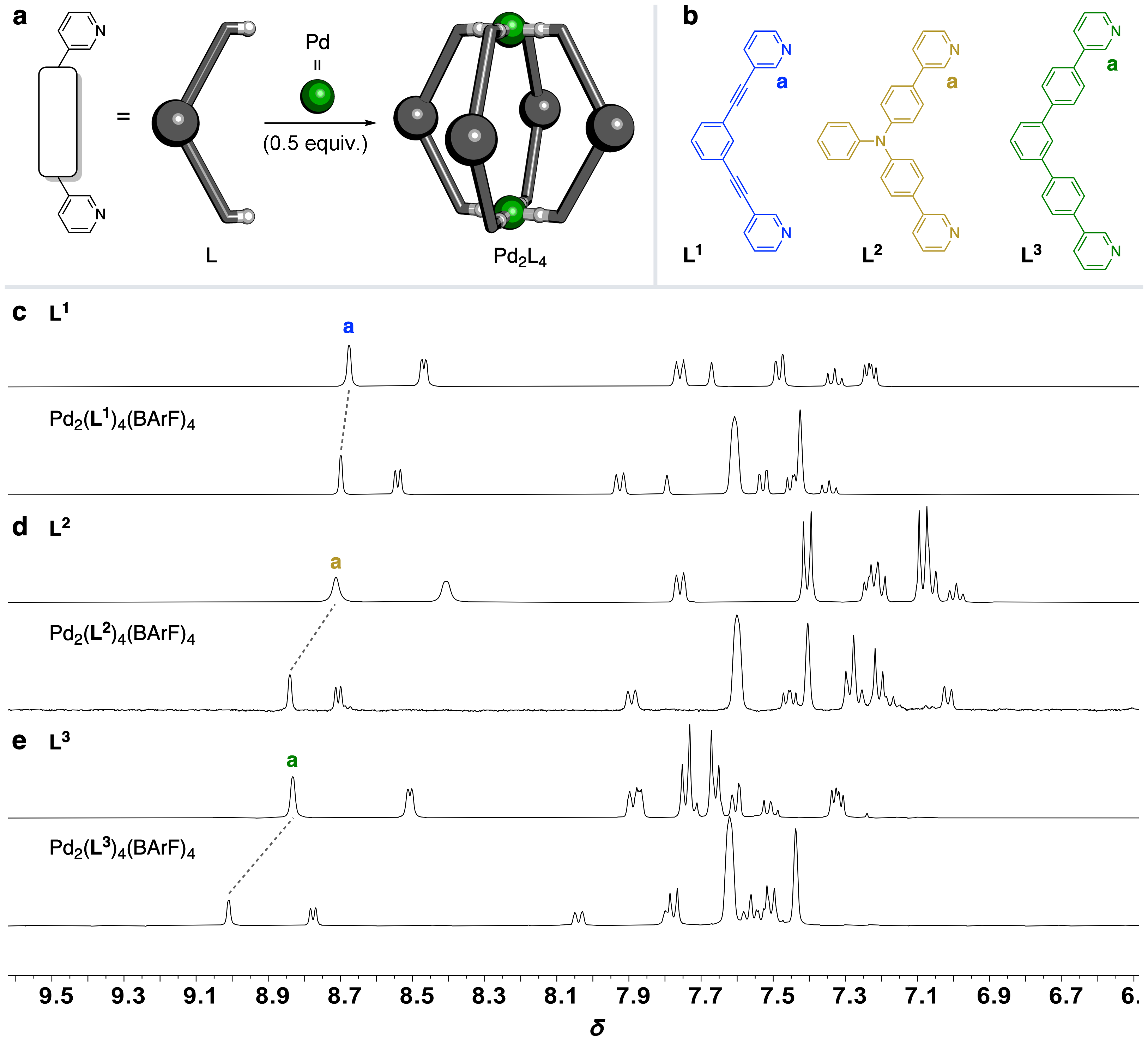

在超分子化学与仿生催化领域,金属有机配位笼(MOCs)凭借其明确的三维空腔结构和可精准修饰的内部微环境,已成为模拟酶活性中心和构筑人工分子器件的理想平台。其中,Pd2L4型“灯笼状”配位笼作为该领域的经典模型体系,被广泛用于主客体化学和限域催化研究。然而,现有研究多集中于以1,3-二乙炔基苯为连接片段的笼结构,而对于与其结构相似的其它配体骨架所构筑的配位笼,相关探索仍较为缺乏,这在一定程度上制约了对此类体系构效关系的全面理解与性能调控。在本项研究中考察了以1,3-二乙炔基苯,三苯胺和三联苯为连接片段的三种Pd2L4笼在主客体识别与催化性能方面的差异。研究发现,不同的配体骨架通过改变配位笼腔内识别位点处的空间位阻,从而影响其客体结合能力与催化活性。上述研究不仅为以1,3-二乙炔基苯为连接片段的Pd2L4笼的优异性能提供了基于空间位阻调控的机制性解释,也揭示了识别位点处的空间微环境对配位笼催化效率的影响作用。这一重要理论认识为未来设计开发高性能仿生催化体系指明了关键方向:在充分保持空腔限域效应这一结构优势的基础上,通过合理设计最大限度地降低识别位点的空间位阻,将成为同步提升配位笼催化反应效率与底物结构普适性的核心优化策略与重要突破口。

关键词: 金属有机配位笼, 主客体识别, 配位笼催化, Pd2L4

In the fields of supramolecular chemistry and biomimetic catalysis, metal-organic cages (MOCs) have emerged as an ideal platform for mimicking enzyme active sites and constructing artificial molecular devices, owing to their well-defined three-dimensional cavities and precisely tunable internal microenvironments. Among these, the Pd₂L₄-type "lantern-shaped" coordination cage serves as a classic model system in this domain and is widely employed in host-guest chemistry research. However, existing studies have predominantly focused on cage structures based on the 1,3-diethynylbenzene linker, while in-depth exploration of other structurally analogous cages remains relatively scarce, limiting a comprehensive understanding of structure-activity relationships and the precise modulation in such systems.

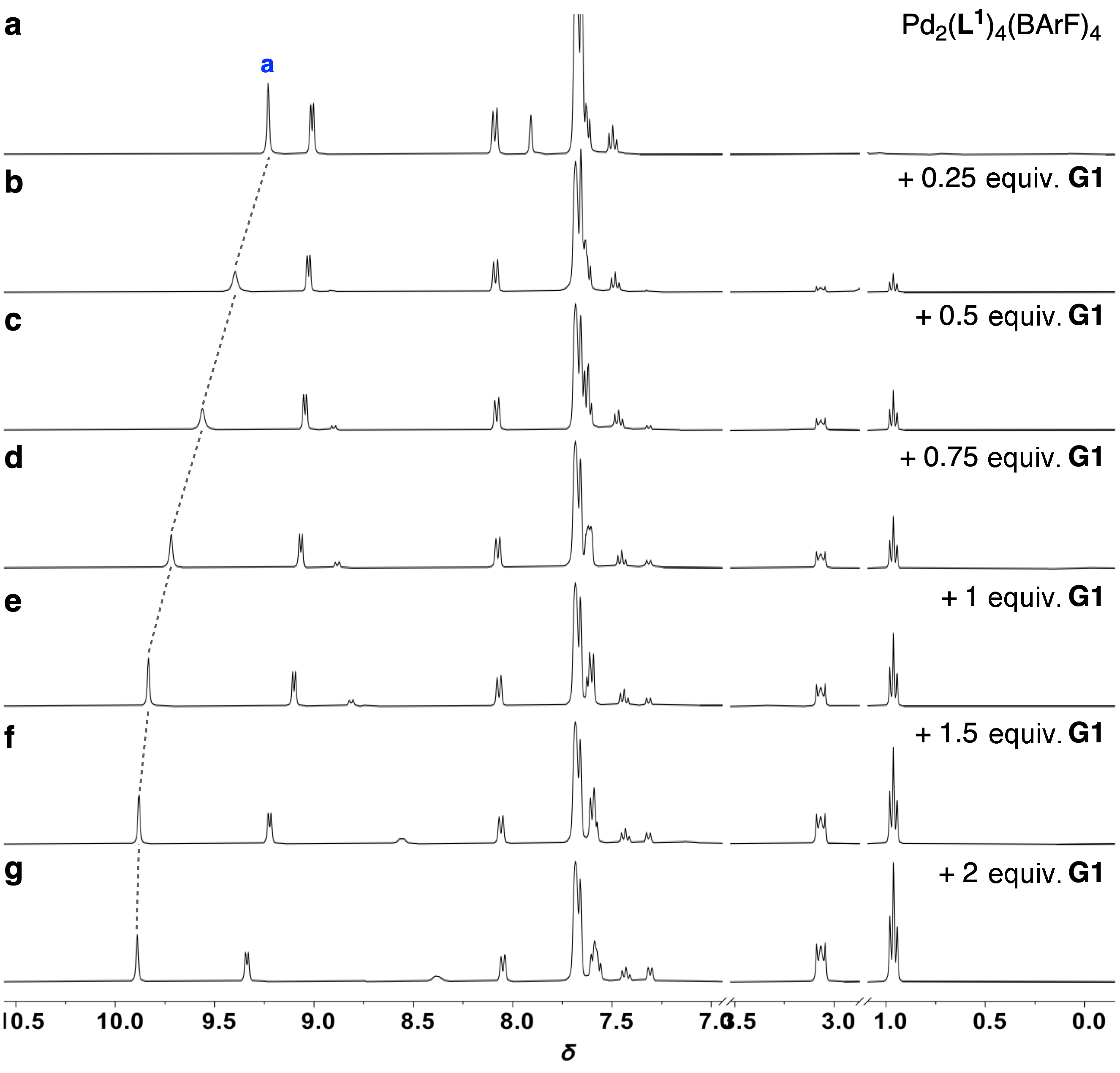

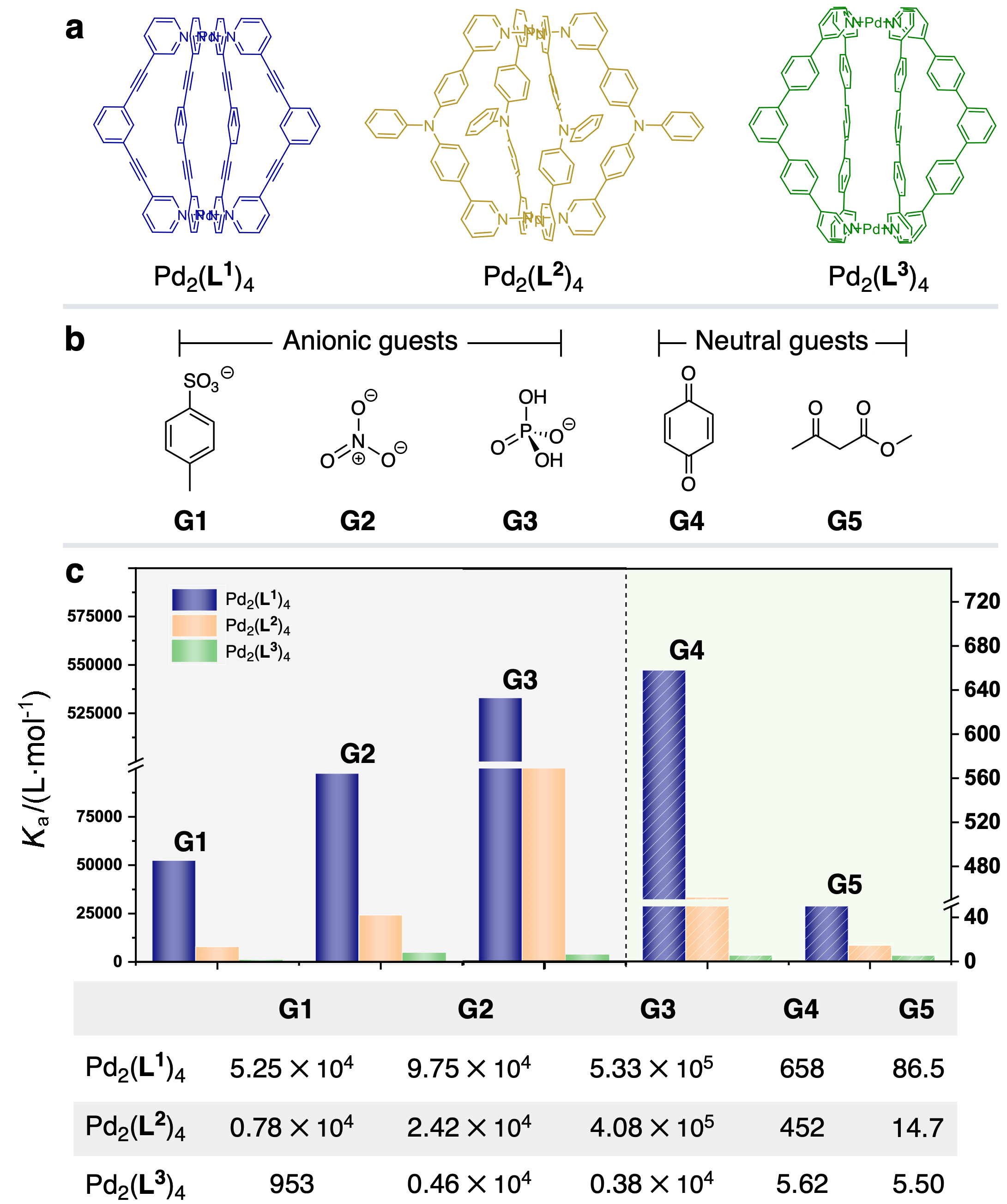

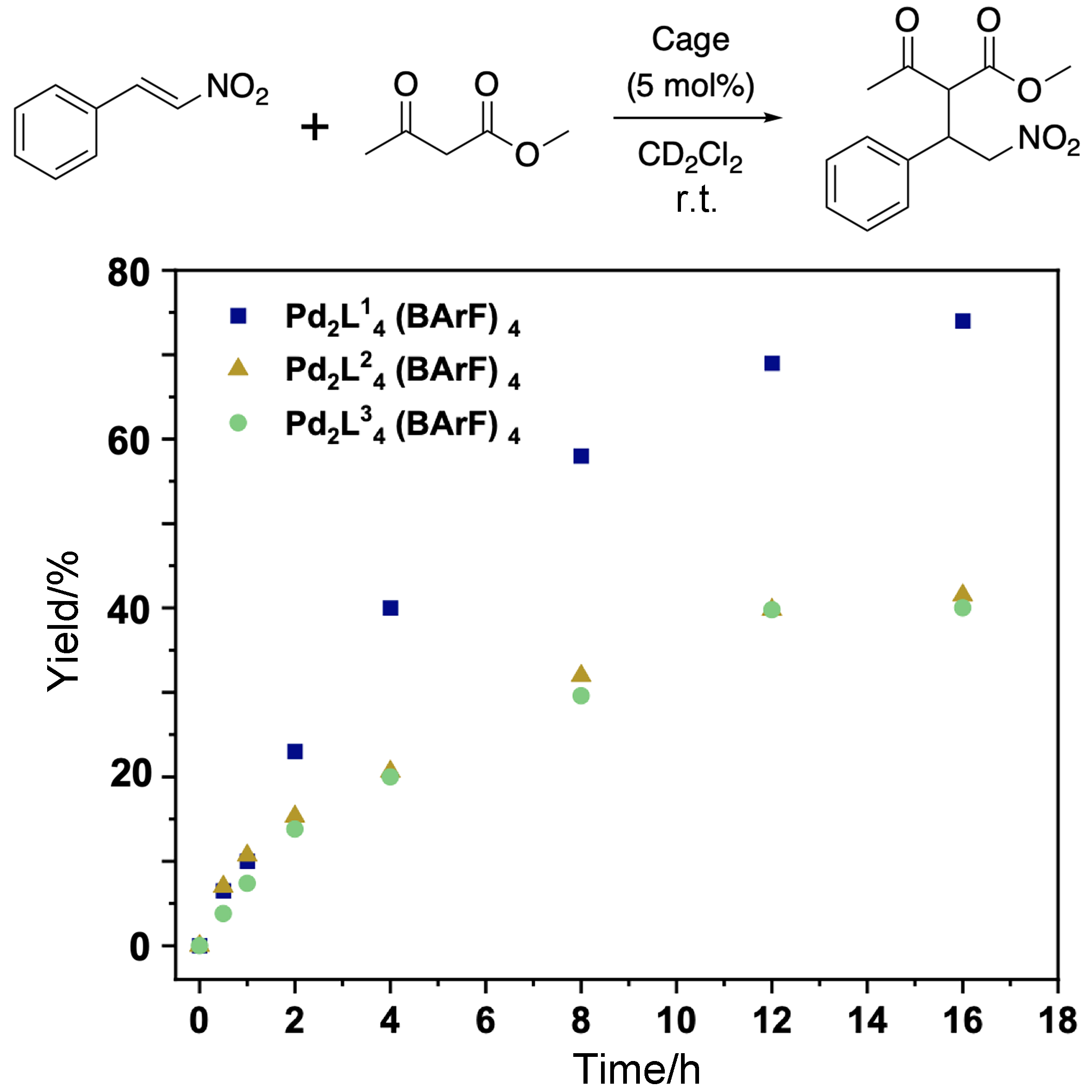

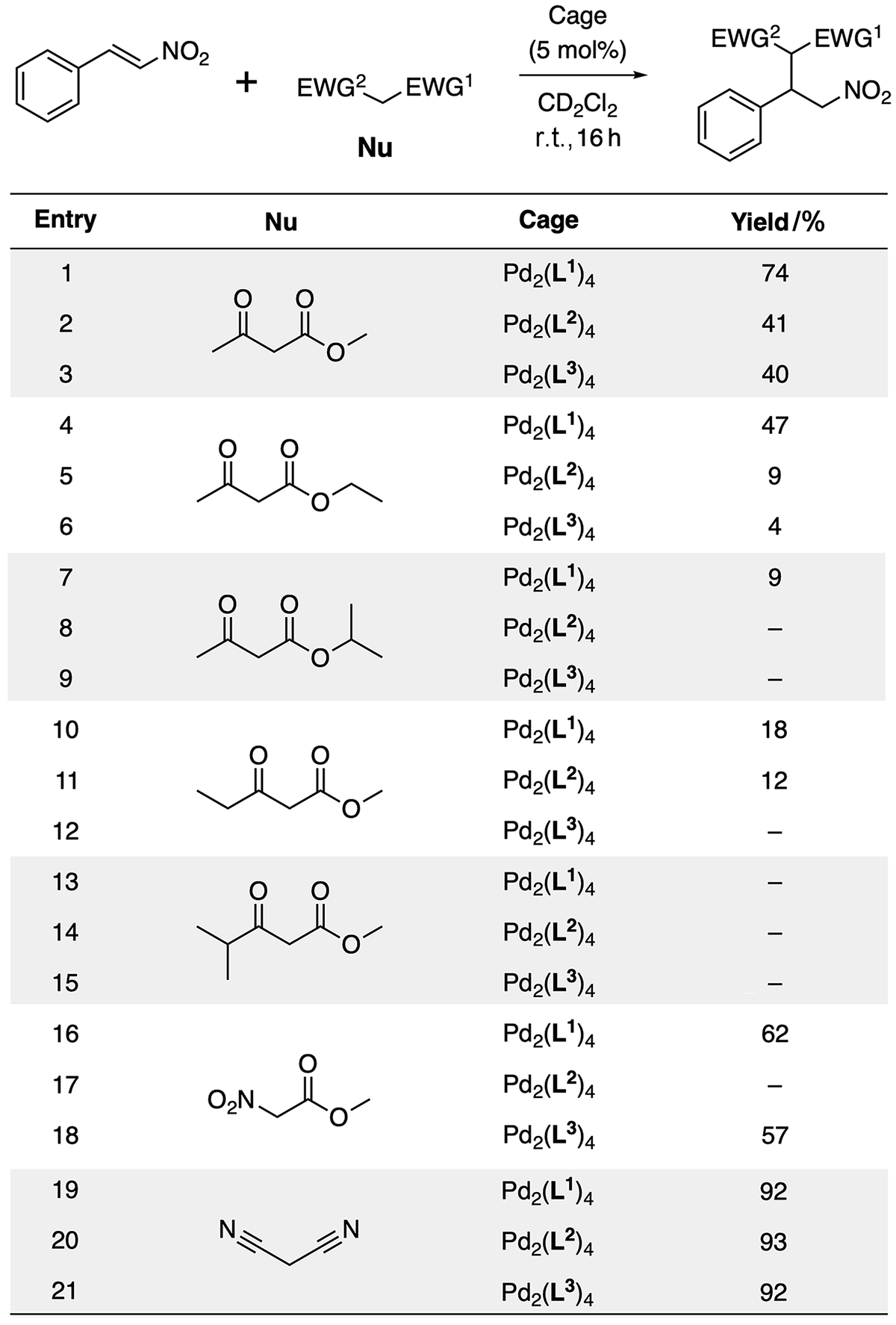

In this study, we systematically investigated the recognition capabilities of three Pd₂L₄ cages featuring 1,3-diethynylbenzene, triphenylamine, and terphenyl as linkers toward three representative anionic guests (TSO-, NO3-, H2PO4-) and two neutral guests (1,4-Benzoquinone, Methyl acetoacetate) through NMR titration experiments. The catalytic performance of these MOCs was subsequently evaluated by monitoring the in situ NMR yields of Michael addition reactions conducted under identical reaction conditions. Our experimental findings demonstrate that variations in ligand backbone structures substantially alter the steric hindrance at the recognition sites within the cage cavity, thereby exerting profound influence on both guest binding affinity and catalytic activity. These comparative investigations not only furnish mechanistic explanations rooted in steric hindrance regulation for the superior performance observed in 1,3-diethynylbenzene-based Pd₂L₄ cages, but also unveil the decisive role of spatial microenvironment at recognition sites in governing the catalytic efficiency of MOCs.
This fundamental insight establishes critical design principles for future development of high-performance biomimetic catalytic systems: while preserving the cavity confinement effect as an essential structural advantage, the strategic minimization of steric hindrance at recognition sites through rational molecular design represents a pivotal optimization strategy. Such an approach will concurrently enhance catalytic reaction efficiency and expand substrate scope generality, thereby opening new avenues for advancing coordination cage-based catalysis toward practical synthetic applications.

Key words: Metal-organic cages, host-guest recognition, cage catalysis, Pd2L4
