Study on Synthesis and H2-Liberation Reaction of the Frustrated Lewis Pair (FLP)-Type Aluminum Hydrides

doi:10.6023/cjoc202510011

Chinese Journal of Organic Chemistry ›› 2026, Vol. 46 ›› Issue (3): 881-887.DOI: 10.6023/cjoc202510011 Previous Articles Next Articles

ARTICLES

受阻Lewis酸碱对(FLP)型铝氢化合物的合成及其放H₂反应研究

陈艺林^a^,^b^,^*(), 朱成建^a^,^*()

^a 南京大学化学化工学院南京 210023
^b 江苏南大光电材料股份有限公司江苏苏州 215000

收稿日期:2025-10-16 修回日期:2025-11-24 发布日期:2026-01-15
通讯作者: 陈艺林, 朱成建
基金资助:
国家自然科学基金(22271144)

Study on Synthesis and H₂-Liberation Reaction of the Frustrated Lewis Pair (FLP)-Type Aluminum Hydrides

Yilin Chen^a^,^b^,^*(), Chengjian Zhu^a^,^*()

^a School of Chemistry and Chemical Engineering, Nanjing University, Nanjing 210023
^b Jiangsu Nata Opto-electronic Material Co., Ltd., Soochow, Jiangsu 215000

Received:2025-10-16 Revised:2025-11-24 Published:2026-01-15
Contact: Yilin Chen, Chengjian Zhu
Supported by:
National Natural Science Foundation of China(22271144)

1. .pdf(1479KB)

Abstract

Synthesis and H₂-liberation properties of N/Al frustrated Lewis pair (FLP)-type aluminum hydrides have been studied. By use of 2,2,6,6-tetramethylpiperidine, iodobenzene, n-BuLi, AlCl₃, and LiAlH₄ as precursor materials for the five-step organometallic synthesis route, FLP aluminum dihydride (o-TMP-C₆H₄)AlH₂ [1, TMP= N(CMe₂CH₂)₂CH₂] that featured an intremolecular N→Al bonding was prepared. Compound 1 was occurred by a disproportionational H₂-liberation in toluene at 80 ℃ to give aluminum monohydride (o-TMP-C₆H₄)₂AlH (2), while compound 2 was able to react by further H₂- liberation at 50 ℃ via dehydrogenation of 3-C(sp²)—H of N-methylindole, affording [(o-TMP-C₆H₄)]₂Al(3-C₈H₅NMe) (3). Compound 1 reacted readily with indole at －30 ℃ to afford H₂-releasing compound [(o-TMP-C₆H₄)Al(μ-H)(NC₈H₆)]₂ (4). Compound 4 further reacted with indole at room temperature to generate (o-TMP-C₆H₄)Al(NC₈H₆)₂ (5). Finally, compound 1 reacted with B(C₆F₅)₃ by a group exchange between Al—H and B—C₆F₅ bonds to afford (o-TMP-C₆H₄)(C₆F₅)Al(μ-H)₂- B(C₆F₅)₂ (6), which features an Al(μ-H)₂B 3c-2e bond. Upon treatment with Al(C₆F₅)₃, metathesis between Al—H and Al—C₆F₅ bonds occurred to give [(o-TMP-C₆H₄)(C₆F₅)Al(μ-H)]₂ (7) containing an Al(μ-H)₂Al 3c-2e bond. Compounds 1~7 all exhibit N/Al FLP-character. The H₂-liberation reactions of 1, 2 and 4 were assisted by the concerted activation of either the C(sp²)—H or N—H bonds via the N/Al FLP moieties.

Key words: N/Al FLP-type aluminum hydride, H₂-liberation reaction, FLP-type activation, 3c-2e bond compound

Cite this article

Yilin Chen, Chengjian Zhu. Study on Synthesis and H₂-Liberation Reaction of the Frustrated Lewis Pair (FLP)-Type Aluminum Hydrides[J]. Chinese Journal of Organic Chemistry, 2026, 46(3): 881-887.

Export EndNote|Reference Manager|ProCite|BibTeX|RefWorks

share this article

Fig. & Tab. 11

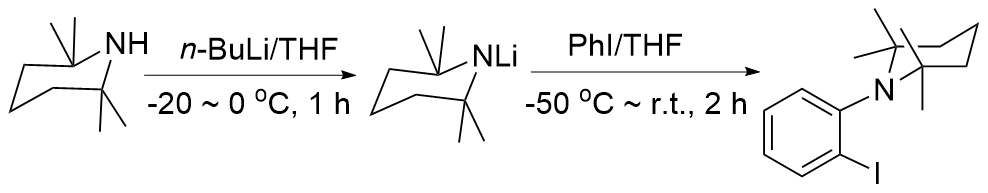

Scheme 1. Synthetic route to (o-TMP-C6H4)I

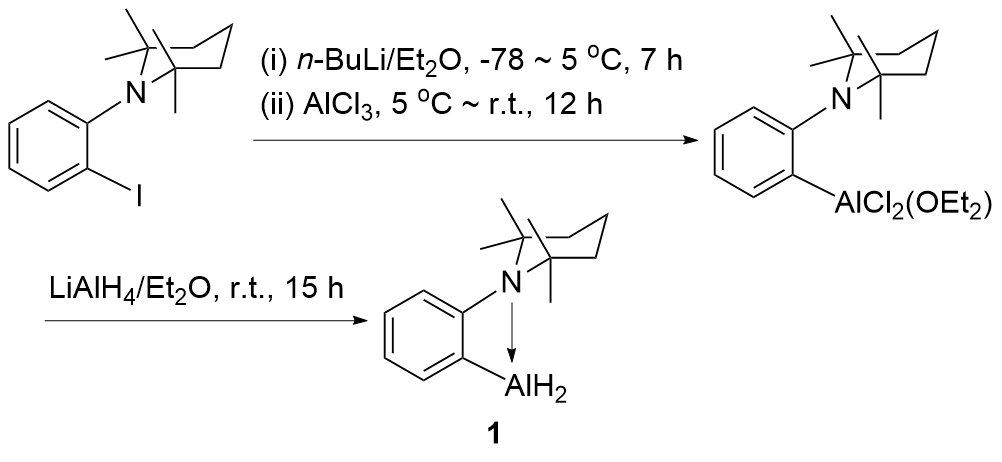

Scheme 2. Synthetic route to N/Al FLP compound 1

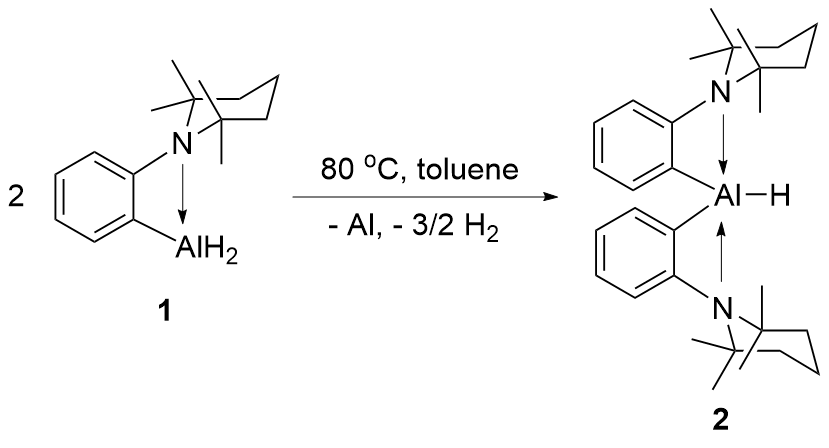

Scheme 3. H2-Liberation reaction by solvent thermal treatment of compound 1 for synthesis of compound 2

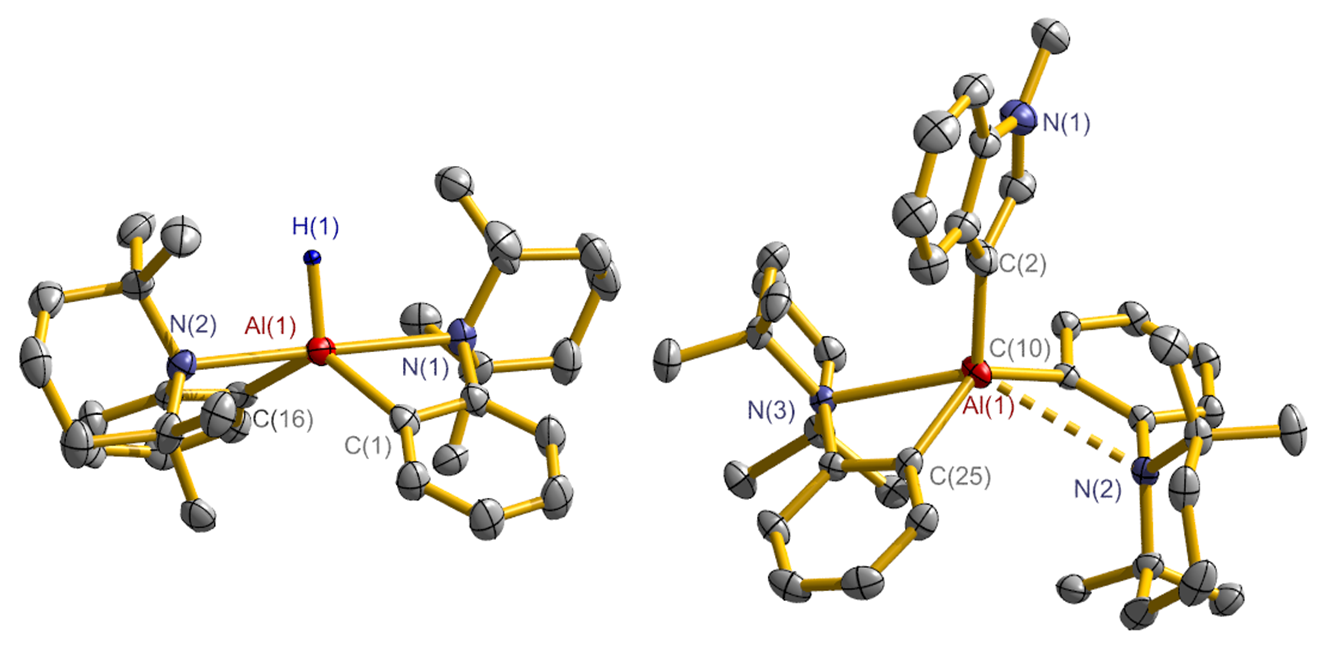

Figure 1. X-ray crystal structures of compounds 2 (left) and 3 (right) with thermal ellipsoids at 50% probability

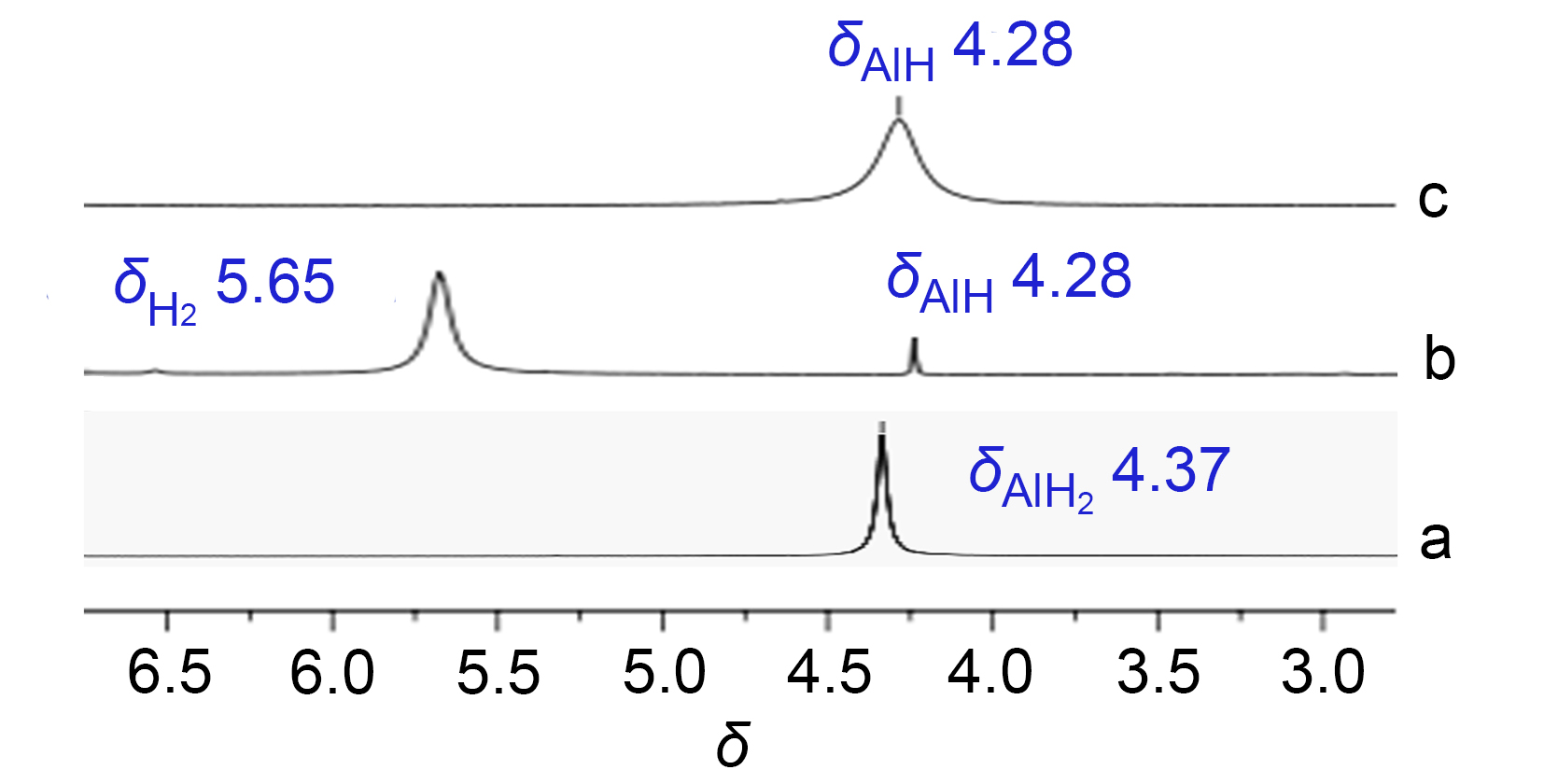

Figure 2. Result for the 1H NMR spectrium-traced reaction (a) 1H NMR spectrium of 1 in CDCl3; (b) 1H NMR spectrium-traced heat treatment of 1 in CDCl3; (c) 1H NMR spectrium of 2 in CDCl3

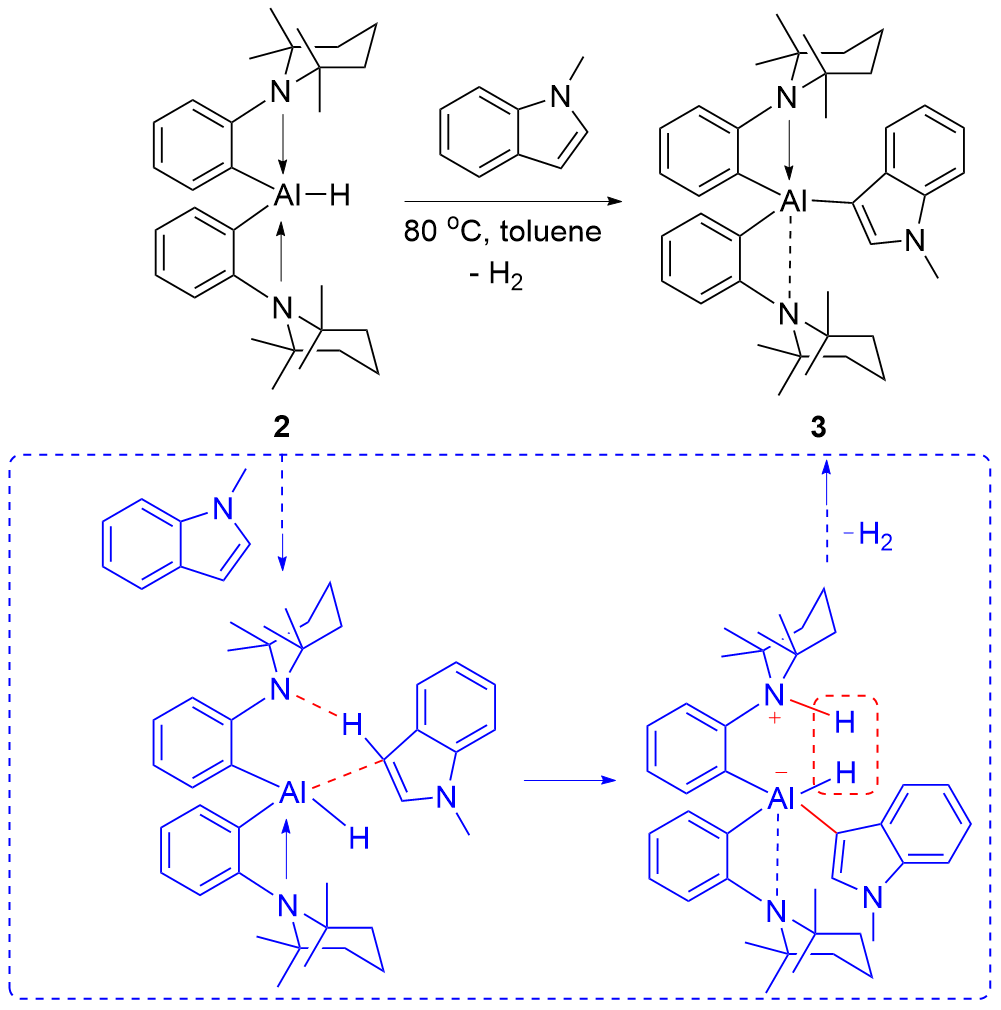

Scheme 4. H2-Liberation reaction by dehydrogenation of the C(sp2)—H of N-methylindole of compound 2 and the related FLP-type activation mechanism

Compd.	Al—C	Al—N	C—Al—N	Al—H
1^a	0.1944(1)	0.2311(1)	66.90(1)	0.1478(18) 0.1585(16)
2	0.1990(7) 0.1990(7)	0.2416(6) 0.2461(6)	64.30(2) 64.70(2)	0.1520(4)
3	0.1959(4) 0.1987(3)	0.2678(3) 0.3129	51.70 60.0(6)
4	0.1937(2)	0.2233(2)	68.70(9)	0.1520(2) 0.1967(2)
6	0.1918(3)	0.2133(2)	71.25(8)	0.1740(2) 0.1868(18)
7	0.1940(2)	0.2288(2)	67.59(7)	0.1596(2) 0.1940(18)

Table 1. Bond lengths (nm) and angles (°) for (o-TMP-C6H4)Al and AlH moieties of the FLP compounds 1~4 and 6, 7

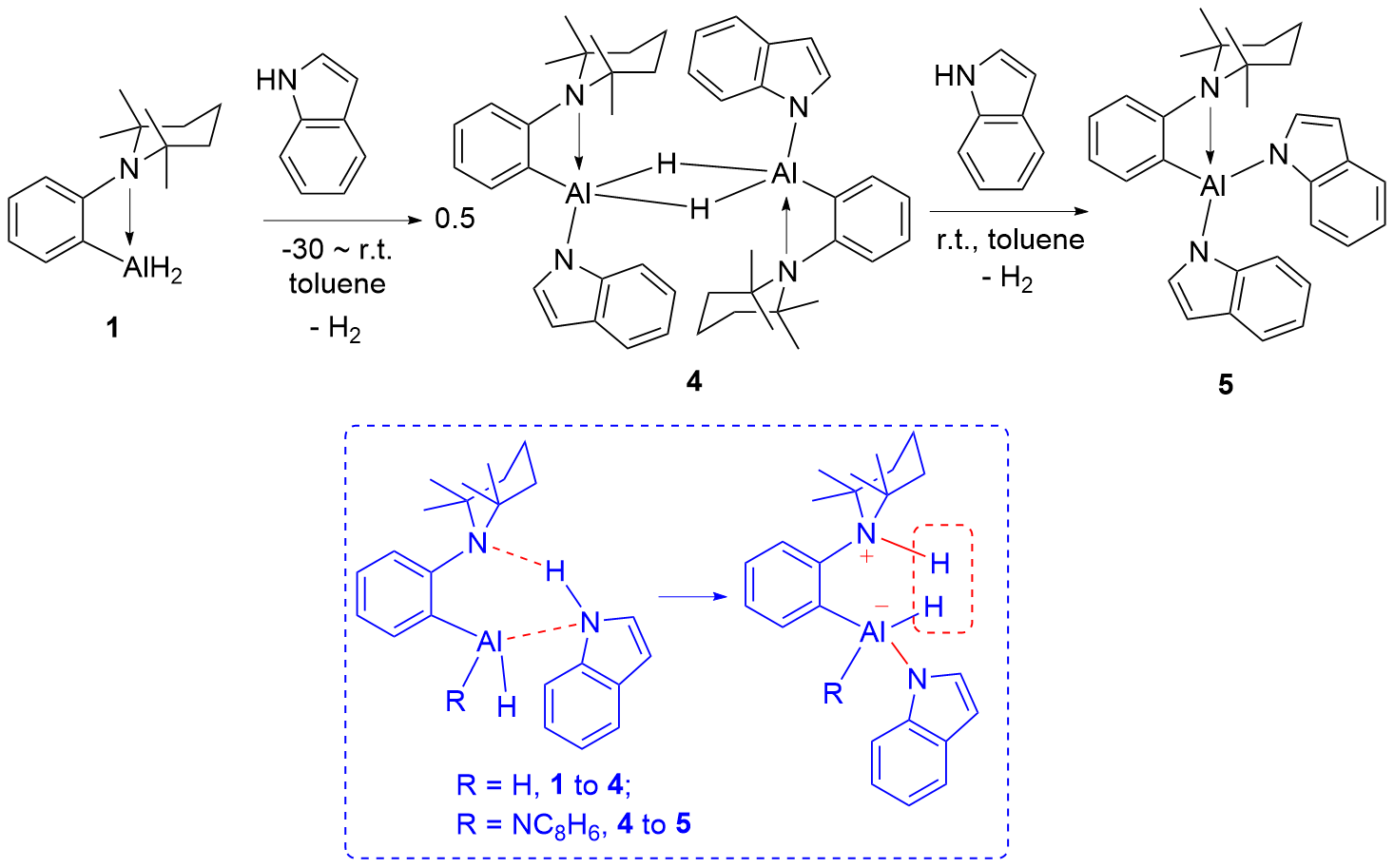

Scheme 5. H2-Liberation reaction by dehydrogenation of the NH of indole using compound 1 and the related FLP-type concerted activation mechanism

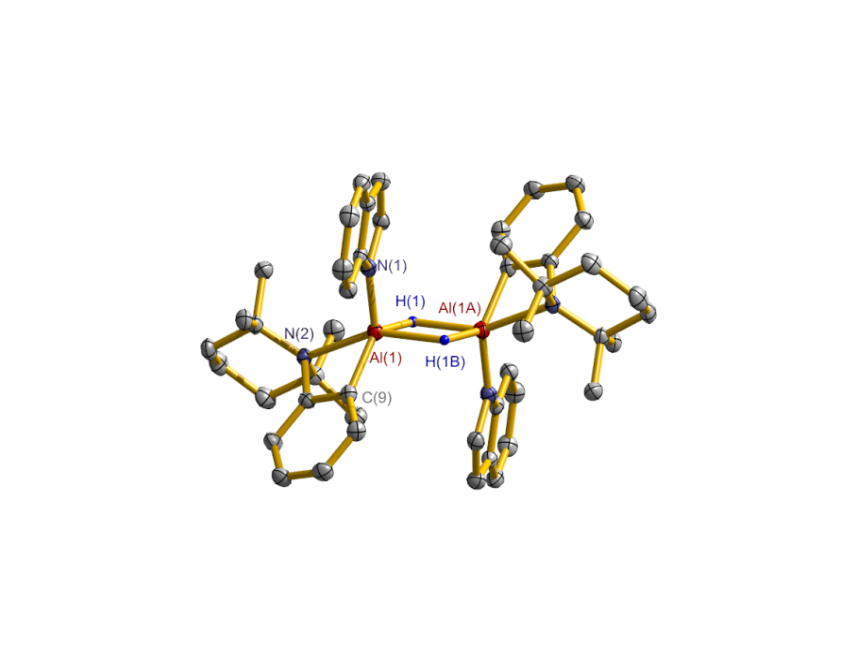

Figure 3. X-ray crystal structure of compounds 4 with thermal ellipsoids at 50% probability

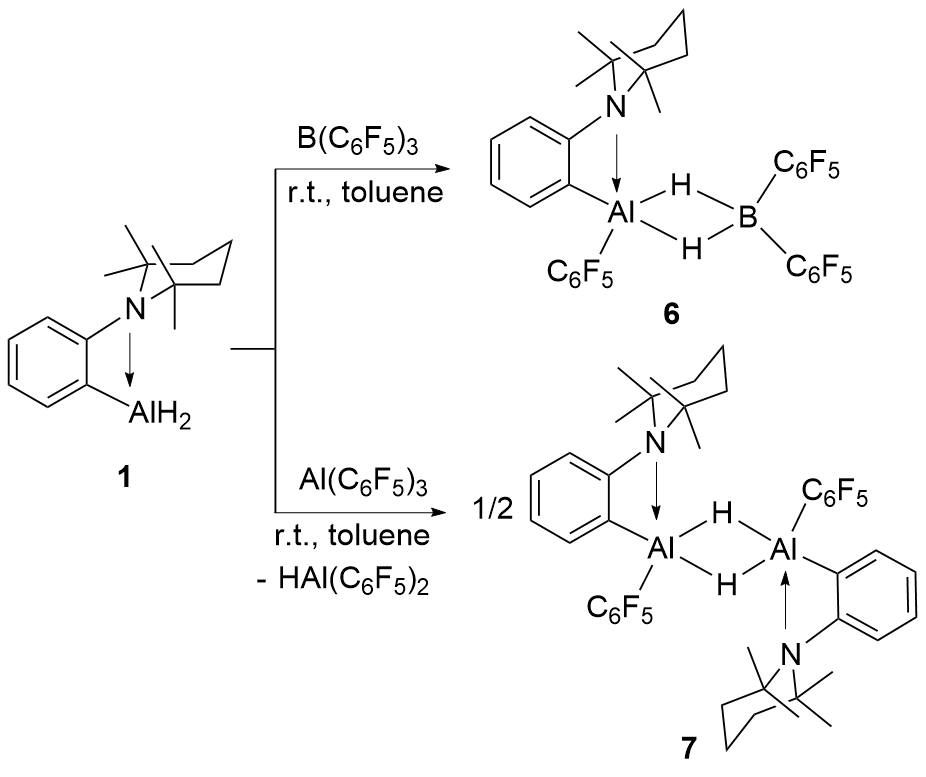

Scheme 6. Reactions of compound 1 with the respective B(C6F5)3 and Al(C6F5)3 for synthesis of compounds 6 and 7

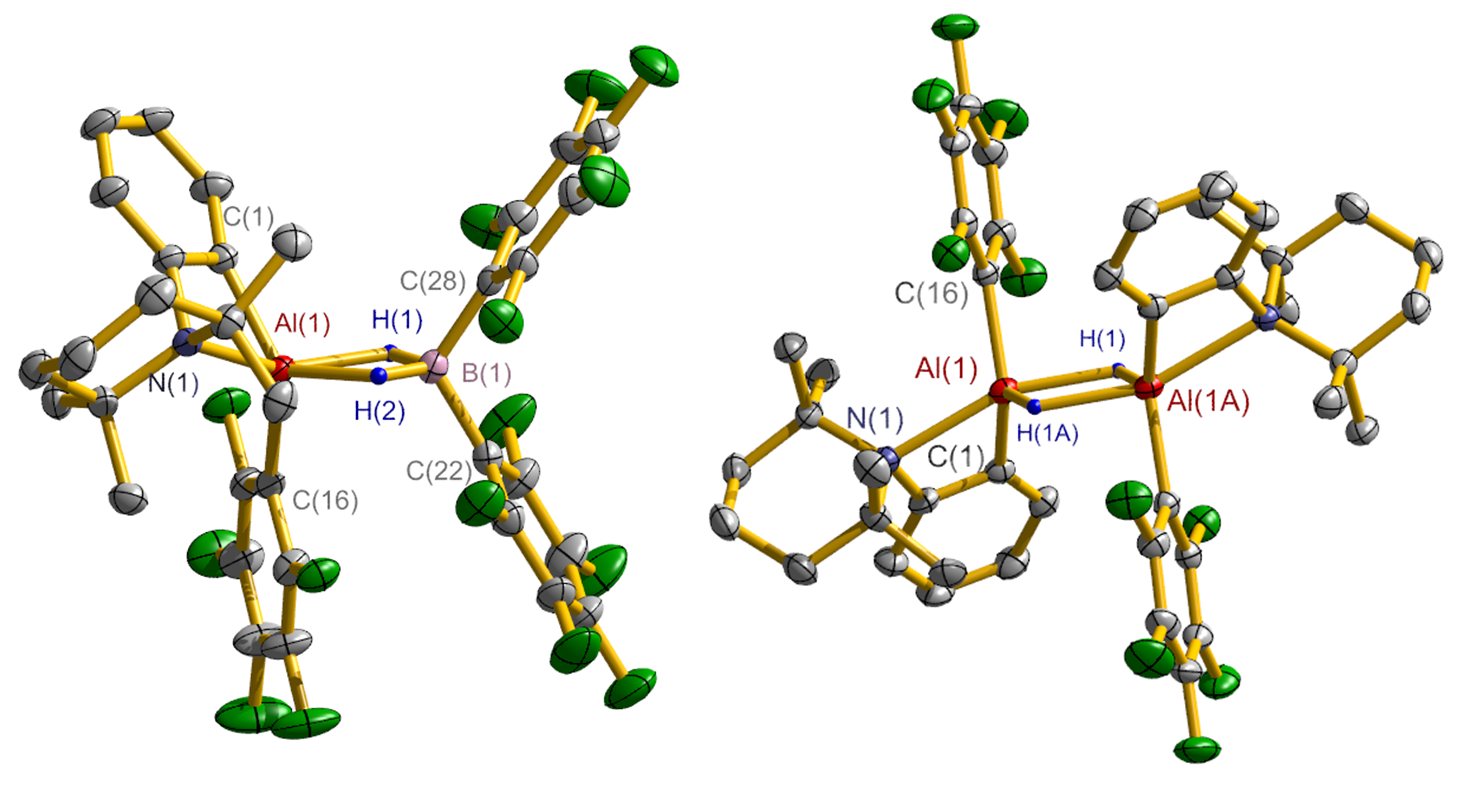

Figure 4. X-ray crystal structures of 6 (left) and 7 (right) with both thermal ellipsoids at 50% probability level

References 23

[1]	(a) Wehmschulte, R. J.; Power, P. P. Polyhedron 2000, 19, 1649.
	(b) Uhl, W. Coord. Chem. Rev. 2008, 252, 1540.
	(c) Li, W.; Ma, X.; Walawalkar, M. G.; Yang, Z.; Roesky, H. W. Coord. Chem. Rev. 2017, 350, 14.
[2]	(a) Zidan, R.; Garcia-Diaz, B. L.; Fewox, C. S.; Stowe, A. C.; Gray, J. R.; Harter, A. G. Chem. Commun. 2009, 3717.
	(b) Teprovich, J. A.; Motyka, T.; Zidan, R. Int. J. Hydrogen Energy 2012, 37, 1594.
[3]	Finholt, A. E.; Bond, A. C. Jr.; Schlesinger, H. I. J. Am. Chem. Soc. 1947, 69, 1199.
[4]	Ashby, E. C.; Brendel, G. J.; Redman, H. E. Inorg. Chem. 1963, 2, 499.
[5]	Shen, P.; Zhang, Y.; Xhen, S.; Che, R.; Ban, Y.; Liu, D. Chem. J. Chin. Univ. 1982, 3, 169 (in Chinese).
	(申泮文, 张允什, 陈声昌, 车荣睿, 班月霞, 刘鼎容, 高等学校化学学报, 1982, 3, 169.)
[6]	Brower, F. M.; Matzek, N. E.; Reigler, P. F.; Rinn, H. W.; Roberts, C. B.; Schmidt, D. L.; Snover, J. A.; Terada, K. J. Am. Chem. Soc. 1976, 98, 2450.
[7]	Gardiner, M. G.; Raston, C. L. Coord. Chem. Rev. 1997, 166, 1.
[8]	Graetz, J.; Wegrzyn, J.; Reilly, J. J. Am. Chem. Soc. 2008, 130, 17790.
[9]	Herley, P. J.; Christofferson, O.; Todd, J. A. J. Solid State Chem. 1980, 35, 391.
[10]	DeLuca, L. T.; Galfetti, L. F.; Severini, F.; Rossettini, L.; Meda, L.; Marra, G.; D’Andrea, B.; Weiser, V.; Calabro, M.; Vorozhtsov, A. B.; Glazunov, A. A.; Pavlovets, G. J. Aerosp. Sci. Technol. 2007, 11, 18.
[11]	(a) Uhl, W.; Layh, M.; Rhotert, I.; Wollschläger, A.; Hepp, A. Z. Naturforch. B 2013, 68, 503.
	(b) Uhl, W.; Er, E.; Hepp, A.; Kösters, J.; Grunenberg, J. Organometallics 2008, 27, 3346.
[12]	Roudesly, F.; Oble, J.; Poli, G. J. Mol. Cat. A: Chem. 2017, 426, 275.
[13]	Chen, S.; Li, B.; Wang, X.; Huang, Y.; Li, J.; Zhu, H.; Zhao, L.; Frenking, G.; Roesky, H. W. Chem.-Eur. J. 2017, 23, 13633.
[14]	Tripathy, S.; LeBlanc, R.; Durst, T. Org. Lett. 1999, 1, 1973.
[15]	(a) Sheldrick, G. M. SHELX-97, Program for Crystal Structure Solution and Refinement, University of Göttingen, Germany, 1997.
	(b) Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J. J. Appl. Crystallogr. 2009, 42, 339.
[16]	Zhu, H.; Yang, Z.; Magull, J.; Roesky, H. W.; Schmidt, H.-G.; Noltemeyer, M. Organometallics 2005, 24, 6420.
[17]	(a) Parks, D. J.; von, R. E.; Spence, H.; Piers, W. E. Angew. Chem., Int. Ed. Engl. 1995, 34, 809.
	(b) Patrick, E. A.; Piers, W. E. Chem. Commun. 2020, 56, 841.
[18]	(a) González-Hernández, R.; Chai, J.; Charles, R.; Pérez-Camacho, O.; Kniajanski, S.; Collins, S. Organometallics 2006, 25, 5366.
	(b) Tan, J.; Hu, C.; Yang, X.; Ju, S.; Cao, L. L.; Wu, Y.; Liu, L. L.; Stephan, D. W. Chem. Commun. 2023, 59, 282.
[19]	Chen, E. Y.-X.; Marks, T. J. Chem. Rev. 2000, 100, 1391.
[20]	Chen, Z.; Mao, Y.; Cao, Y.; Liang, S.; Song, S.; Ni, C.; Liu, Z.; Ye, X.; Shen, A.; Zhu, H. Chin. J. Org. Chem. 2018, 38, 2937 (in Chinese).
	(陈志康, 毛远洪, 曹育才, 梁胜彪, 宋莎, 倪晨, 刘振宇, 叶晓峰, 沈安, 朱红平, 有机化学, 2018, 38, 2937.)
[21]	Massey, A. G.; Park, A. J. J. Organomet. Chem. 1964, 2, 245.
[22]	Xi, X.; Zhang, G.; Li, J.; Huang, Y.; Jiang, W.; Wu, P.; Zhu, H. Chin. J. Org. Chem. 2021, 41, 766 (in Chinese).
	(席鑫, 张公平, 李建成, 黄艳婷, 蒋文军, 吴鹏, 朱红平, 有机化学, 2021, 41, 766.)
[23]	(a) Hair, G. S.; Cowley, A. H.; Jones, R. A.; McBurnett, B. G.; Voigt, A. J. Am. Chem. Soc. 1999, 121, 4922.
	(b) Chen, J.; Chen, E. Y.-X. Dalton Trans. 2016, 45, 6105.
