基于3,6-二苯硒基咔唑的多重共振热活化延迟荧光分子

doi:10.6023/A25090323

化学学报 ›› 2026, Vol. 84 ›› Issue (2): 248-256.DOI: 10.6023/A25090323 上一篇下一篇

研究论文

基于3,6-二苯硒基咔唑的多重共振热活化延迟荧光分子

汪庆辉^a^,^†(), 任正^a^,^†(), 张凯^b^,^*(), 周东营^a^,^*(), 樊健^a^,^c^,^*()

^a 苏州大学功能纳米与软物质研究院仿生界面材料科学全国重点实验室苏州 215123
^b 曲阜师范大学物理与工程学院物理与工程学院山东曲阜 273165
^c 中国科学院福建物质结构研究所结构化学国家重点实验室结构化学国家重点实验室福建福州 350002

投稿日期:2025-09-27 发布日期:2025-11-10
基金资助:
项目受国家重点研发计划(2020YFA0714604); 项目受国家重点研发计划(2024YFB3612102); 江苏省国际科技合作/港澳台科技合作项目(BZ2023053)

Multiple Resonance Thermally Activated Delayed Fluorescence Molecule Based on 3,6-Diphenylselenylcarbazole

Qinghui Wang^a(), Zheng Ren^a(), Kai Zhang^b^,^*(), Dongying Zhou^a^,^*(), Jian Fan^a^,^c^,^*()

^a State Key Laboratory of Bioinspired Interfacial Materials Science, Institute of Functional Nano & Soft Materials (FUNSOM), Soochow University, Suzhou 215123, China
^b College of Physics and Engineering, Qufu Normal University, Qufu 273165, Shandong, China
^c State Key Laboratory of Structural Chemistry, Fujian Institute of Research on Structure of Matter, Chinese Academy of Sciences, Fuzhou 350002, Fujian, China

Received:2025-09-27 Published:2025-11-10
Contact: *E-mail: 15692312996@163.com;dyzhou@suda.edu.cn;jianfan@suda.edu.cn
Supported by:
National Key R&D Program of China(2020YFA0714604); National Key R&D Program of China(2024YFB3612102); International Science and Technology Innovation Cooperation/Hong Kong, Macao and Taiwan Science and Technology Innovation Cooperation Project of Jiangsu Province, China(BZ2023053)

文章分享

1. Supporting Information-A25090323.pdf(1101KB)

摘要/Abstract

传统的多重共振热活化延迟荧光材料(MR-TADF)的反向系间窜越速率(k_RISC)低, 器件在高亮度下效率滚降明显. 因此, 本工作利用硒的重原子效应, 增强S₁与T₁的自旋轨道耦合, 提高三线态激子反向系间窜越速率, 从而降低器件在高亮度下的效率滚降. 在经典的硼氮类多重共振热活化延迟荧光材料BCzBN的基础上, 设计并合成了一种将硒原子引入咔唑的3, 6号位上的分子即2SetCzBN. 2SetCzBN在稀甲苯溶液中的半峰宽为26 nm, ΔE_ST仅有0.14 eV, 并且分子具有大的自旋轨道耦合, 最终实现了高达2.49×10⁶ s⁻¹的反向系间窜越速率. 将2SetCzBN分子掺杂在主体材料9-(2-(9-苯基-9H-咔唑-3-基)苯基)-9H-3,9'-双咔唑(PhCzBCz)中制备的器件具有绿色发光, 当掺入15% (w) Firpic敏化时, 器件的最大外量子效率(EQE_max)可达到27.6%, 并且在1000 cd/m²的高亮度下, 器件的EQE为22.2%, 具有很低的效率滚降; 通过调控电子传输层厚度为50 nm时器件最大EQE达到了31.3%.

关键词: 热激活延迟荧光, 重原子效应, 多重共振效应, 硒原子, 有机发光二极管

Abstract Conventional multiple resonance thermally activated delayed fluorescence material (MR-TADF) has a narrow emission spectrum with full width at half maximum (FWHM) <30 nm due to its planar rigid structure that suppresses vibrational relaxation and thus makes devices with higher color purity, but it usually faces the problem of a low rate of reverse intersystem crossing (k_RISC), and the device has a significant roll-off in efficiency at high luminance. Therefore, a molecule 2SetCzBN was designed and synthesized by introducing selenium atoms into the 3, 6 position of carbazole, which utilizes the heavy-atom effect of selenium to enhance the spin-orbit coupling effect of S₁ and T₁, accelerating the reverse intersystem crossing rate and thus decreasing the efficiency roll-off of the device at high luminance. The thermal decomposition temperature (temperature at 5% mass loss, T_d) of the compound 2SetCzBN was 388 ℃, proving that it can be sufficient to withstand the heat treatment procedures during device preparation. The FWHM of 2SetCzBN in dilute toluene solution is 26 nm and the ΔE_ST is only 0.14 eV. The prompt fluorescence lifetimes of 2SetCzBN film is 1.3 ns and the delayed fluorescence lifetime is 3.27 μs. The orbital distribution and geometric configuration of 2setczbn are simulated, and the molecule has a high oscillator strength (f) of 0.4577. Meanwhile, the S₁ and T₁ of 2SetCzBN are hybrid local charge transfer (HLCT) excited states, and the T₂ energy level is mainly local excited states (LE). In addition, due to the influence of heavy atom effect, 2SetCzBN has a large spin-orbit coupling constant of 2.132 cm⁻¹, and finally achieves a high reverse intersystem crossing rate (2.49×10⁶ s⁻¹). Remarkably, when 2SetCzBN was doped in the host material PhCzBCz with 15% (w) Firpic as the sensitizer, the organic light-emitting diode (OLED) device achieves a maximum EQE of 27.6%, and 22.2% at 10³ cd/m². Furthermore, the maximum EQE can reach 31.3% with the optimal thickness of the electron-transport layer (50 nm).

Key words: thermally activated delayed fluorescence, heavy atom effect, multiple resonance effect, selenium, organic light-emitting diode

引用此文

汪庆辉, 任正, 张凯, 周东营, 樊健. 基于3,6-二苯硒基咔唑的多重共振热活化延迟荧光分子[J]. 化学学报, 2026, 84(2): 248-256.

Qinghui Wang, Zheng Ren, Kai Zhang, Dongying Zhou, Jian Fan. Multiple Resonance Thermally Activated Delayed Fluorescence Molecule Based on 3,6-Diphenylselenylcarbazole[J]. Acta Chimica Sinica, 2026, 84(2): 248-256.

导出引用 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

分享此文

图/表 11

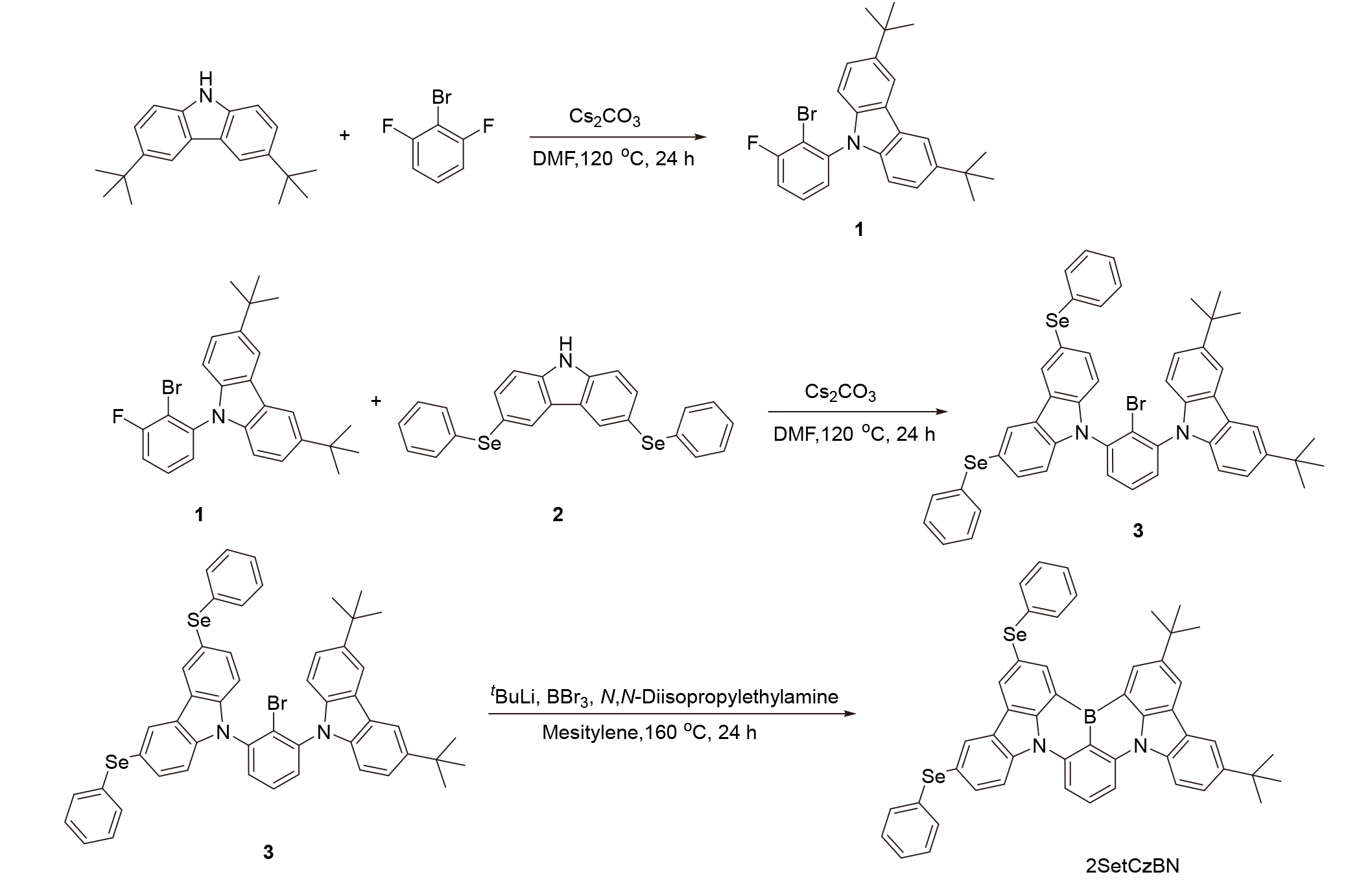

图式1. 2SetCzBN的合成路线

Scheme 1. Synthetic route of 2SetCzBN

图1. (a) 2SetCzBN分子在溶剂中HOMO和LUMO的能量和分布. (b)激发态的绝热激发能及自旋轨道耦合常数(SOC). (c)单重态和三重态的跃迁属性(箭头右方为LE占比)

Figure 1. (a) The energy and distribution of HOMO and LUMO of 2SetCzBN molecules in solvents. (b) The adiabatic excitation energy and spin orbit coupling constant (SOC) of the excited state. (c) The transition properties of singlet and triplet states (The right side of the arrow indicates the proportion of LE)

图2. (a) 2SetCzBN在稀释甲苯溶液(10−5 mol/L)中的紫外-可见吸收光谱､荧光光谱(298 K)和磷光光谱(77 K). (b)在300 K真空下, 2SetCzBN薄膜的瞬态光致发光(PL)衰减曲线

Figure 2. (a) UV/vis absorption, fluorescence (298 K), and phosphorescence (77 K) spectra of 2SetCzBN in toluene (10−5 mol/L). (b) Transient photoluminescence (PL) decay curve for the 2SetCzBN in film via vacuum processes at 300 K

化合物	T_d^a/^°C	HOMO^b/eV	LUMO^b/eV	E_g^c/eV
2SetCzBN	388	－5.33	－2.79	2.54

表1. 2SetCzBN的热力学与电化学数据

Table 1. Thermodynamic and electrochemical data of 2SetCzBN

化合物	λ_abs^a/nm	λ_em^a/nm	FWHM^a/nm	S₁^b/eV	T₁^b/eV	ΔE_ST^c/eV
2SetCzBN	474	496	26	2.61	2.47	0.14

表2. 2SetCzBN的光物理数据

Table 2. Summary of the photophysical properties of 2SetCzBN

化合物	Ф_PL/%	Ф_d/%	τ_p/ns	τ_d/μs	K_p/10⁸ s⁻¹	K_d/10⁵ s⁻¹	K_r^S/10⁷ s⁻¹		K_IC/10⁷ s⁻¹	K_ISC/10⁸ s⁻¹	K_RISC/10⁶ s⁻¹
2SetCzBN	70	63.98	1.30	3.27	7.69	2.14		4.63	1.98	7.03	2.49

表3. 2SetCzBN的动力学参数

Table 3. Kinetic parameters of 2SetCzBN

图3. 基于2SetCzBN的二元器件电致发光性能. (a) 2SetCzBN的归一化EL光谱曲线. (b) 2SetCzBN的电流密度-电压特性曲线. (c) 2SetCzBN的电流效率(CE)-亮度特性曲线. (d) 2SetCzBN的外量子效率(EQE)-亮度特性曲线

Figure 3. EL performance of 2SetCzBN based binary OLED. (a) Normalized EL spectra curves of the 2SetCzBN. (b) Current density-voltage characteristics of 2SetCzBN. (c) Current efficiency (CE)-luminance characteristics of the 2SetCzBN. (d) External quantum efficiency (EQE)-luminance characteristics of the 2SetCzBN

发光材料	Dop (w/%)	V_on^a/V	EQE^b/%		CE_max^c/(cd•A⁻¹)		λ_em/nm	FWHM/nm
发光材料	Dop (w/%)	V_on^a/V	Max	@10³ cd/m²	CE_max^c/(cd•A⁻¹)		λ_em/nm	FWHM/nm
2SetCzBN	1 2 5 10	3.2 3.2 3.1 3.1	25.4 27.5 27.7 25.9	9.8 11.7 13.9 15.2	60 70 80 85	500 500 504 508		32 32 36 44

表4. 基于2SetCzBN的二元OLED的EL性能

Table 4. EL performance of 2SetCzBN based binary OLED

发光材料	Dop (w/%)	V_on/V		EQE/%			CE/(cd•A⁻¹)		λ_em/nm	FWHM/nm
发光材料	Dop (w/%)	V_on/V		Max	@10³ cd/m²		Max	@10³ cd/m²	λ_em/nm	FWHM/nm
2SetCzBN 2SetCzBN:Firpic	2 2		3.2 3.1	27.5 27.6	11.7 22.2		70.0 70.0	29.7 56.2	500 500	32 32

表5. 基于2SetCzBN的三元TSF-OLED与二元OLED的EL性能

Table 5. EL performance of 2SetCzBN based ternary TSF-OLED and binary OLED

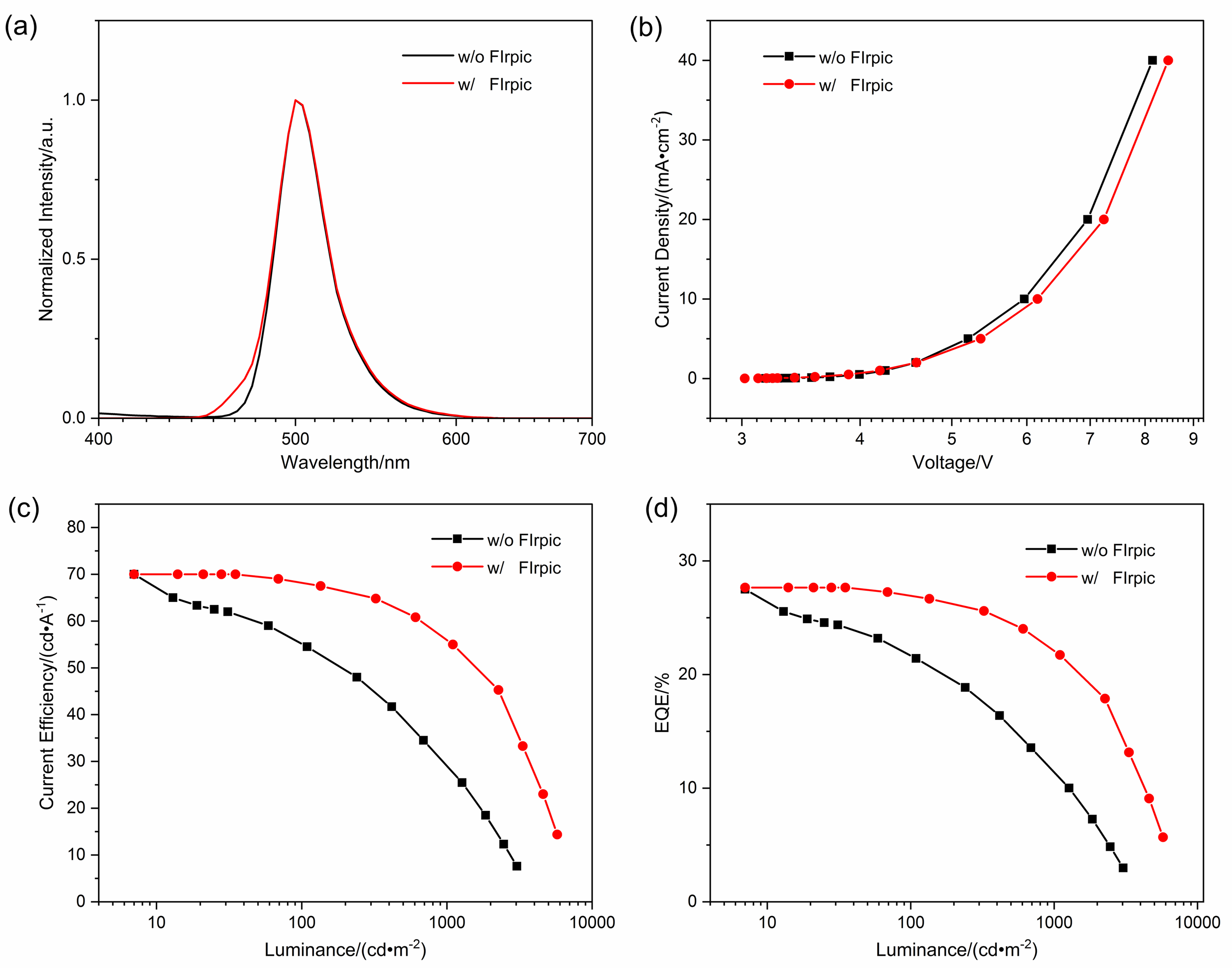

图4. 掺杂浓度为2%时, 基于2SetCzBN的三元敏化器件与未敏化器件电致发光性能. (a) 2SetCzBN的归一化EL光谱曲线. (b) 2SetCzBN的电流密度-电压特性曲线. (c) 2SetCzBN的电流效率(CE)-亮度特性曲线. (d) 2SetCzBN的外量子效率(EQE)-亮度特性曲线

Figure 4. EL performance of 2SetCzBN based ternary TSF-OLED and binary OLED with doping concentrations of 2% (w). (a) Normalized EL spectra curves of the 2SetCzBN. (b) Current density-voltage characteristics of 2SetCzBN. (c) Current efficiency (CE)-luminance characteristics of the 2SetCzBN. (d) External quantum efficiency (EQE)-luminance characteristics of the 2SetCzBN

图5. 掺杂浓度为2%时, 基于2SetCzBN的三元敏化器件在不同电子传输层厚度下的电致发光性能. (a) 2SetCzBN的归一化EL光谱曲线. (b) 2SetCzBN的电流密度-电压特性曲线. (c) 2SetCzBN的电流效率(CE)-亮度特性曲线. (d) 2SetCzBN的外量子效率(EQE)-亮度特性曲线

Figure 5. EL performance of 2SetCzBN based ternary TSF-OLED at different ETL thicknesses with doping concentrations of 2% (w). (a) Normalized EL spectra curves of the 2SetCzBN. (b) Current density-voltage characteristics of 2SetCzBN. (c) Current efficiency (CE)-luminance characteristics of the 2SetCzBN. (d) External quantum efficiency (EQE)-luminance characteristics of the 2SetCzBN

参考文献 38

[1]	Joo W. J.; Kyoung J.; Esfandyarpour M.; Lee S. H.; Koo H.; Song S.; Kwon Y. N.; Song S. H.; Bae J. C.; Jo A.; Kwon M. J.; Han S. H.; Kim S. H.; Hwang S.; Brongersma M. L. Science 2020, 370, 459.
[2]	Ge F.-J.; Zhang K.-Z.; Cao Q.-P.; Xu H.; Zhou T.; Zhang W.-H.; Ban X.-X.; Zhang X.-B.; Li N.; Zhu P. Acta Chim. Sinica 2023, 81, 1157 (in Chinese).
	(葛凤洁, 张开志, 曹清鹏, 徐慧, 周涛, 张文浩, 班鑫鑫, 张晓波, 李娜, 朱鹏, 化学学报, 2023, 81, 1157.)
[3]	Hsiang E. L.; Yang Z. Y.; Yang Q.; Lan Y. F.; Wu S. T. J. Soc. Inf. Disp. 2021, 29, 446.
[4]	Huang Y. G.; Hsiang E. L.; Deng M. Y.; Wu S. T. Light Sci. Appl. 2020, 9, 105.
[5]	Liu P.-Y.; Tang Z.-F.; Sun W.-D. J. Jinan Univ. 2002, 23, 66 (in Chinese).
	(刘彭义, 唐振方, 孙汪典, 暨南大学学报, 2002, 23, 66.)
[6]	Mukherjee S.; Thilagar P. Chem. Commun. 2015, 51, 10988.
[7]	Zhang Q. S.; Li J.; Shizu K.; Huang S. P.; Hirata S.; Miyazaki H.; Adachi C. J. Am. Chem. Soc. 2012, 134, 14706.
[8]	Zheng X.; Yang C.-L. Chin. J. Lumin. 2022, 43, 1027 (in Chinese).
	(郑贤, 杨朝龙, 发光学报, 2022, 43, 1027.)
[9]	Uoyama H.; Goushi K.; Shizu K.; Nomura H.; Adachi C. Nature 2012, 492, 234.
[10]	Luo X. F.; Xiao X. W.; Zheng Y. X. Chem. Commun. 2024, 60, 1089.
[11]	Ma J.-Z.; Li Y.; Gao S.; Zhao Y.; Ding L.; Zhou D.-Y.; Fan J. Acta Chim. Sinica 2025, 83, 17 (in Chinese).
	(马金珠, 李阳, 高珊, 赵越, 丁磊, 周东营, 樊健, 化学学报, 2025, 83, 17.)
[12]	Zhang D.-C.; Jia J.-H.; Liang D.; Cai X.-B.; Zhao Y.-Q.; Hu X.-L.; Jiang Y.-B.; Lu C.-Z. Acta Chim. Sinica 2024, 82, 887 (in Chinese).
	(张登朝, 贾吉慧, 梁栋, 蔡显宝, 赵雨晴, 胡祥龙, 江钰冰, 卢灿忠, 化学学报, 2024, 82, 887.)
[13]	Fang S.-Q.; Tong K.-N.; Chen S.-H.; Zhang Q.-F.; Tong B.-H.; Feng M.-Q.; Kong H. Acta Chim. Sinica 2025, 83, 471 (in Chinese).
	(方素琴, 童恺宁, 陈思浛, 张千峰, 童碧海, 冯敏强, 孔辉, 化学学报, 2025, 83, 471.)
[14]	Jiang H.; Jin J.-B.; Chen R.-F.; Zheng C.; Huang W. Prog. Chem. 2016, 28, 1811 (in Chinese).
	(姜贺, 靳继彪, 陈润锋, 郑超, 黄维, 化学进展, 2016, 28, 1811.)
[15]	Wang Y.-N.; Shao S.-Y.; Wang L.-X. Acta Chim. Sinica 2023, 81, 1202 (in Chinese).
	(王一诺, 邵世洋, 王利祥, 化学学报, 2023, 81, 1202.)
[16]	Hatakeyama T.; Shiren K.; Nakajima K.; Nomura S.; Nakatsuka S.; Kinoshita K.; Ni J.; Ono Y.; Ikuta T. Adv. Mater. 2016, 28, 2777.
[17]	Yuan W. B.; Jin Q.; Du M. X.; Duan L.; Zhang Y. W. Adv. Mater. 2024, 36, 2410096.
[18]	Meng G. Y.; Dai H. Y.; Wang Q.; Zhou J. P.; Fan T. J.; Zeng X.; Wang X.; Zhang Y. W.; Yang D. Z.; Ma D. G.; Zhang D. D.; Duan L. Nat. Commun. 2023, 14, 2394.
[19]	Tankeleviciute E.; Samuel I. D. W.; Zysman-Colman E. J. Phys. Chem. Lett. 2024, 15, 1034.
[20]	Lin Y. J.; Jimenez-Garcia K.; Spielman I. B. Nature 2011, 471, 83.
[21]	Li R.; Wu Z.-M.; Li X.-F.; Wang X.-F.; Song Y.-Z.; Fan J.-Z.; Zhang G.-P.; Wang C.-K.; Lin L.-L. Chin. J. Chem. Phys. 2025, 38, 334.
[22]	Park I. S.; Min H.; Yasuda T. Angew. Chem. Int. Ed. 2022, 61, e202205684.
[23]	Li Q.; Wu Y. L.; Yang Q. Q.; Wang S. M.; Shao S. Y.; Wang L. X. ACS Appl. Mater. Interfaces 2022, 14, 49995.
[24]	Hu Y. X.; Miao J. S.; Hua T.; Huang Z. Y.; Qi Y. Y.; Zou Y.; Qiu Y. T.; Xia H.; Liu H.; Cao X. S.; Yang C. L. Nat. Photonics 2022, 16, 803.
[25]	Hu Y. X.; Miao J. S.; Zhong C.; Zeng Y.; Gong S. L.; Cao X. S.; Zhou X.; Gu Y.; Yang C. L. Angew. Chem. Int. Ed. 2023, 62, e202302478.
[26]	Zhang Y. W.; Zhang D. D.; Wei J. B.; Liu Z. Y.; Lu Y.; Duan L. Angew. Chem. Int. Ed. 2019, 58, 16912.
[27]	Xu Y. C.; Cheng Z.; Li Z. Q.; Liang B. Y.; Wang J. X.; Wei J. B.; Zhang Z. L.; Wang Y. Adv. Opt. Mater. 2020, 8, 1902142.
[28]	Wang J. J.; Li N. Q.; Zhong C.; Miao J. S.; Huang Z. Y.; Yu M. X.; Hu Y. X.; Luo S.; Zou Y.; Li K.; Yang C. L. Adv. Mater. 2023, 35, 2208378.
[29]	Zhang H.; Zhang B.; Zhang Y. W.; Xu Z.; Wu H. Z.; Yin P. A.; Wang Z. M.; Zhao Z. J.; Ma D. G.; Tang B. Z. Adv. Funct. Mater. 2020, 30, 2002323.
[30]	Zhu T.-J.; Li L.-Y. Semicond. Technol. 2007, 04, 358 (in Chinese).
	(朱彤珺, 李来运, 半导体技术, 2007, 04, 358.)
[31]	Ji X.-Q.; Li W.-Z.; Zhong Z.-Y.; Wang T.; Jiang Y.-D. Chin. J. Quantum Electron. 2006, 23, 416 (in Chinese).
	(季兴桥, 黎威志, 钟志有, 王涛, 蒋亚东, 量子电子学报, 2006, 23, 416.)
[32]	Zhang Y. W.; Wei J. B.; Zhang D. D.; Yin C.; Li G. M.; Liu Z. Y.; Jia X. Q.; Qiao J.; Duan L. Angew. Chem. Int. Ed. 2022, 61, e202113206.
[33]	An R. Z.; Zhao F. M.; Shang C. J.; Zhou M.; Cui L. S. Angew. Chem. Int. Ed. 2025, 64, e202420489.
[34]	Wang J.; Zhang F.-J.; Xu Z.; Wang Y.-S. Acta Phys.-Chim. Sin. 2012, 28, 949 (in Chinese).
	(王健, 张福俊, 徐征, 王永生, 物理化学学报, 2012, 28, 949.)
[35]	Wang Q.; Huang T.-Y.; Zhang D.-D.; Duan L. Chin. J. Lumin. 2023, 44, 77 (in Chinese).
	(王琪, 黄天宇, 张东东, 段炼, 发光学报, 2023, 44, 77.)
[36]	Chang C. H.; Lu Y. J.; Liu C. C.; Yeh Y. H.; Wu C. C. J. Disp. Technol. 2007, 3, 193.
[37]	Yang X. L.; Zhou X. W.; Zhang Y. X.; Li D. L.; Li C. S.; You C. F.; Chou T. C.; Su S. J.; Chou P. T.; Chi Y. Adv. Sci. 2022, 9, 2201150.
[38]	Li W. J.; Lin T. Y.; Zhu F.; Yan D. H. J. Mater. Chem. C 2025, 13, 16954.

基于3,6-二苯硒基咔唑的多重共振热活化延迟荧光分子

Multiple Resonance Thermally Activated Delayed Fluorescence Molecule Based on 3,6-Diphenylselenylcarbazole

RichHTML

PDF

补充材料

可视化

摘要/Abstract

引用此文

分享此文

图/表 11

参考文献 38

相关文章 14

编辑推荐

相关统计

本文评价

[1]	方素琴, 童恺宁, 陈思浛, 张千峰, 童碧海, 冯敏强, 孔辉. 基于呫吨酮电子受体的高效圆偏振热活化延迟荧光材料[J]. 化学学报, 2025, 83(5): 471-478.
[2]	朱韵飞, 郭可威, 王子路, 李昊, 朱爱云, 马靖尧, 祝守加, 冯全友, 解令海. 芴基功能化D-A型可拉伸电致发光聚合物及其发光二极管[J]. 化学学报, 2025, 83(11): 1300-1308.
[3]	闫安, 许世攀, 杜旭洋, 刘文平, 赵堃翔, 李胜利, 钟道昆, 周桂江, 杨晓龙, 孙源慧. 位阻诱导扭曲结构的蓝光材料合成及其在蓝色有机发光二极管(OLED)中的应用[J]. 化学学报, 2025, 83(11): 1317-1323.
[4]	马金珠, 李阳, 高珊, 赵越, 丁磊, 周东营, 樊健. 基于吩嗪受体单元的高效近红外热激活延迟荧光[J]. 化学学报, 2025, 83(1): 17-24.
[5]	王一诺, 邵世洋, 王利祥. 窄谱带多重共振有机高分子荧光材料研究进展^★[J]. 化学学报, 2023, 81(9): 1202-1214.
[6]	葛凤洁, 张开志, 曹清鹏, 徐慧, 周涛, 张文浩, 班鑫鑫, 张晓波, 李娜, 朱鹏. 柔性芴基嵌段型延迟荧光二聚体的设计、合成及电致发光性能[J]. 化学学报, 2023, 81(9): 1157-1166.
[7]	刘振宇, 饶俊峰, 祝守加, 王兵洋, 余帆, 冯全友, 解令海. 溶液加工型自主体热活化延迟荧光材料的研究进展[J]. 化学学报, 2023, 81(7): 820-835.
[8]	王银凤, 李猛, 陈传峰. 基于手性三蝶烯的红光热激活延迟荧光聚合物及其有机发光二极管研究^★[J]. 化学学报, 2023, 81(6): 588-594.
[9]	张少秦, 李美清, 周中军, 曲泽星. 多共振热激活延迟荧光过程的理论研究[J]. 化学学报, 2023, 81(2): 124-130.
[10]	周路, 陈嘉雄, 籍少敏, 陈文铖, 霍延平. 喹喔啉类红光热活化延迟荧光材料研究进展[J]. 化学学报, 2022, 80(3): 359-372.
[11]	周静, 田雪迎, 王斌凯, 张沙沙, 刘宗豪, 陈炜. 低温原子层沉积封装技术在OLED上的应用及对有机、钙钛矿太阳能电池封装的启示[J]. 化学学报, 2022, 80(3): 395-422.
[12]	周涛, 钱越, 王宏健, 冯全友, 解令海, 黄维. 热活化延迟荧光蓝光小分子取代基效应的研究进展[J]. 化学学报, 2021, 79(5): 557-574.
[13]	梁志鹏, 唐瑞, 邱雨晨, 王阳, 陆洪彬, 吴正光. 基于八氢联萘酚的大位阻手性发光材料构建及光电性质研究[J]. 化学学报, 2021, 79(11): 1401-1408.
[14]	巫友雄, 任泓扬, 吴义芳, 王炳喜. 萘酰亚胺类电荷转移化合物能隙的理论研究[J]. 化学学报, 2015, 73(1): 53-59.
