Plasmonics of Ag Nanoparticles for Enhancing Photoelectrocatalytic CO2 to Ethanol

doi:10.6023/A25070257

Abstract

This study achieves highly selective photoelectrocatalytic CO₂ reduction to ethanol through plasmon-enhanced Cu₂O/Ag photocathodes, overcoming inherent limitations of Cu₂O including narrow light absorption and rapid charge recombination. The fabrication involved sequential electrodeposition on fluorine-doped tin oxide transparent conducting glass (FTO): CuSCN at –0.3 V vs. Ag/AgCl (0.1 mol/L CuSO₄•5H₂O, 0.1 mol/L ethylenediaminetetraacetic acid (EDTA), 0.1 mol/L KSCN) followed by Cu₂O at –0.1 mA•cm^–2 (0.4 mol/L CuSO₄, 3 mol/L lactic acid, pH 12.5). Triangular Ag nanoparticles (AgNPs) synthesized via light-assisted reduction were deposited via drop-casting at 70 ℃, with 100 μL•cm^–2 identified as optimal loading. Comprehensive characterization validated the structure and mechanism: field emission transmission electron microscope (FE-TEM) confirmed epitaxial Ag(111)/Cu₂O(110) growth; XPS revealed interfacial electron transfer via Cu⁺2p_3/2(931.04→931.66 eV) and Ag 3d_5/2(369.08→368.52 eV) shifts; UV-Vis DRS demonstrated localized surface plasmon resonance (LSPR)-mediated absorption extension to 700 nm; and 40% PL quenching indicated suppressed recombination. Under AM 1.5G illumination in 0.1 mol/L KHCO₃, the optimized photocathode achieved a photocurrent density of –2.02 mA•cm^–2 at 0 V vs. RHE, a 30% enhancement versus bare Cu₂O (–1.56 mA•cm^–2). Electrochemical analyses revealed increased carrier concentration (5.56×10¹⁶ cm^–3) and reduced Tafel slope, signifying accelerated kinetics. Crucially, CO₂ reduction at –0.2 V vs. RHE yielded ethanol with 81.3% Faradaic efficiency (0.358 μmol•h^–1•cm^–2) while suppressing hydrogen evolution (<1% FE). Total carbon product FE exceeding 100% suggests participation of non-Faradaic catalytic cycles. Performance degradation at excessive loading (300 μL•cm^–2; 32% photocurrent reduction) confirmed aggregation effects. Finite-Difference Time-Domain (FDTD) simulations corroborated the mechanism, showing 15-fold electromagnetic field enhancement at AgNPs tips under 600 nm illumination, aligning with peak Incident Photon-to-Current Efficiency (IPCE). The record ethanol selectivity stems from synergistic LSPR effects: near-field enhancement facilitates *CO intermediate formation and adsorption, hot electron injection promotes multi-electron transfers crucial for C—C coupling, and the Ag/Cu₂O Schottky barrier effectively suppresses parasitic hydrogen evolution reaction (HER). This work establishes a material design paradigm for efficient solar-to-fuel conversion targeting value-added multi-carbon products.

Key words: localized surface plasmon resonance, silver nanoparticles, cuprous oxide, photoelectrocatalysis, carbon dioxide reduction

Cite this article

Zihan Zhang, Xiaopeng Zhan, Jinhao Mei, Yi Liu, Yanuo Ma, Yiming Wei, Chenyu Xu. Plasmonics of Ag Nanoparticles for Enhancing Photoelectrocatalytic CO₂ to Ethanol[J]. Acta Chimica Sinica, 2026, 84(1): 43-52.

Export EndNote|Reference Manager|ProCite|BibTeX|RefWorks

share this article

Fig. & Tab. 11

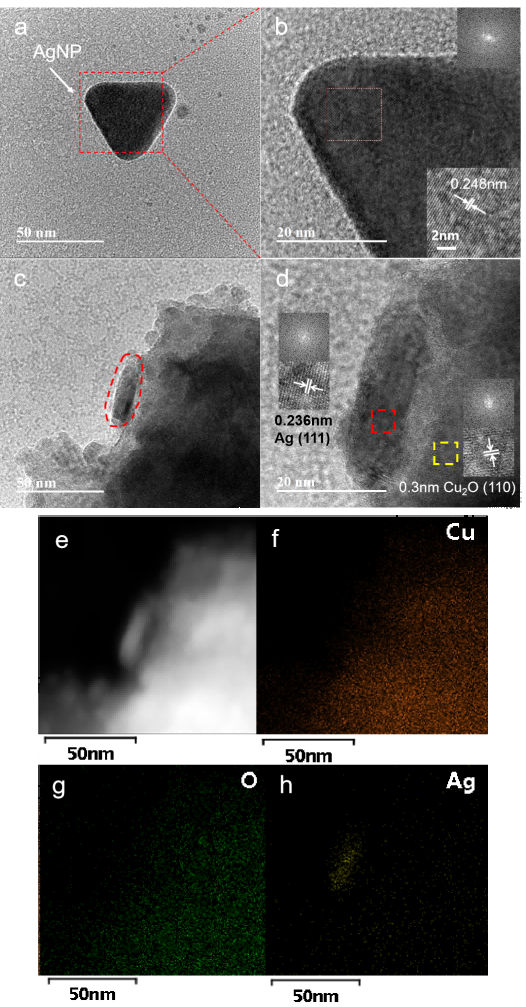

Figure 1. (a) TEM image of AgNPs; (b) magnified TEM image of AgNPs, with the inset in the upper right corner showing the fast Fourier transform (FFT) pattern of the selected area, and the lower right corner displaying the lattice spacing of the AgNPs; (c) TEM image of Cu2O loaded with AgNPs (red dashed area); (d) magnified TEM image of the Cu2O/AgNPs composite structure, with the left and right insets showing the FFT pattern and lattice spacing of the selected Ag and Cu2O regions, respectively; (e~h) EDS elemental distribution of silver nanoparticles supported on cuprous oxide

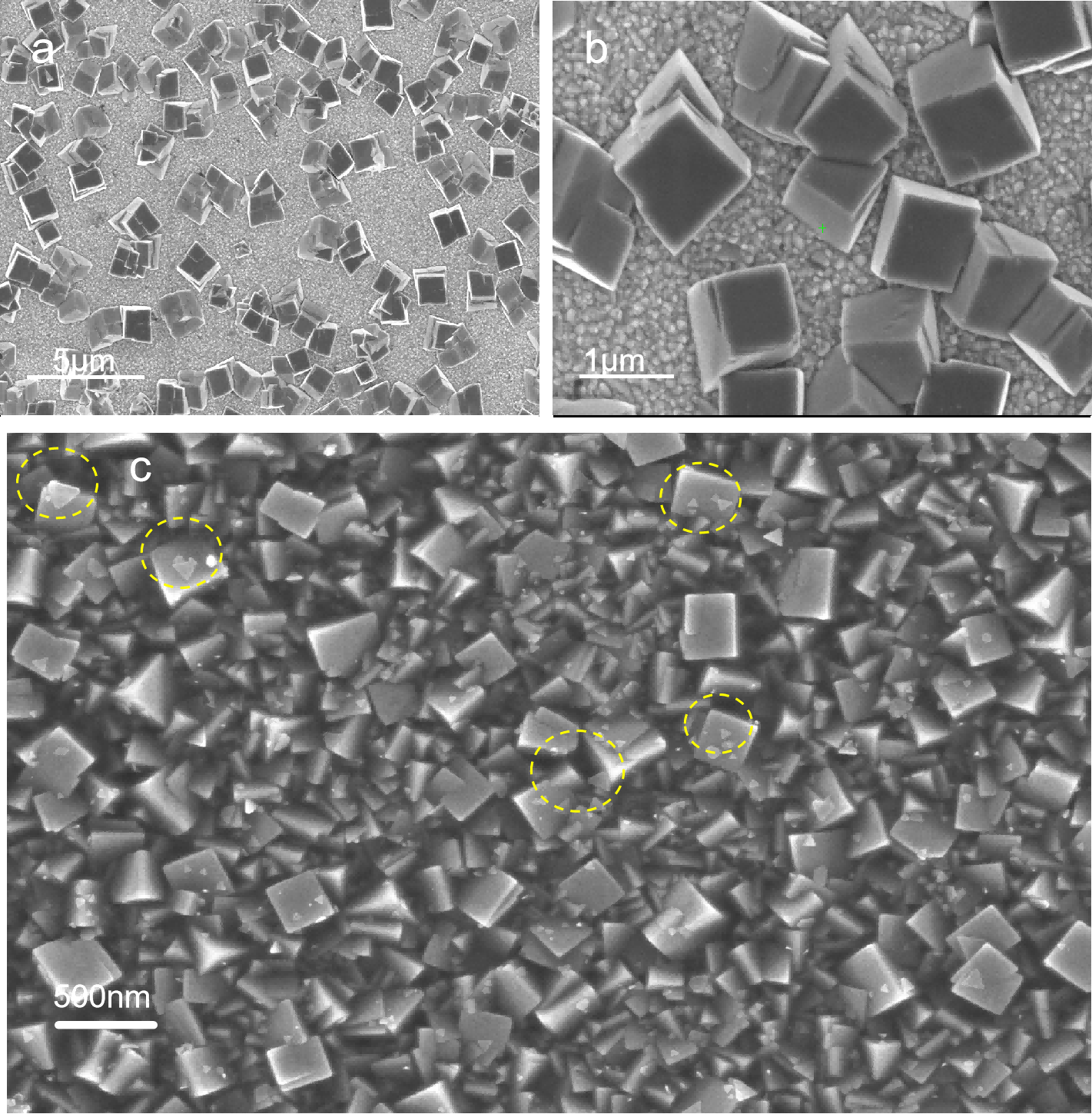

Figure 2. SEM images of (a, b) FTO/CuSCN/Cu2O and (c) FTO/ CuSCN/Cu2O/AgNPs photocathode

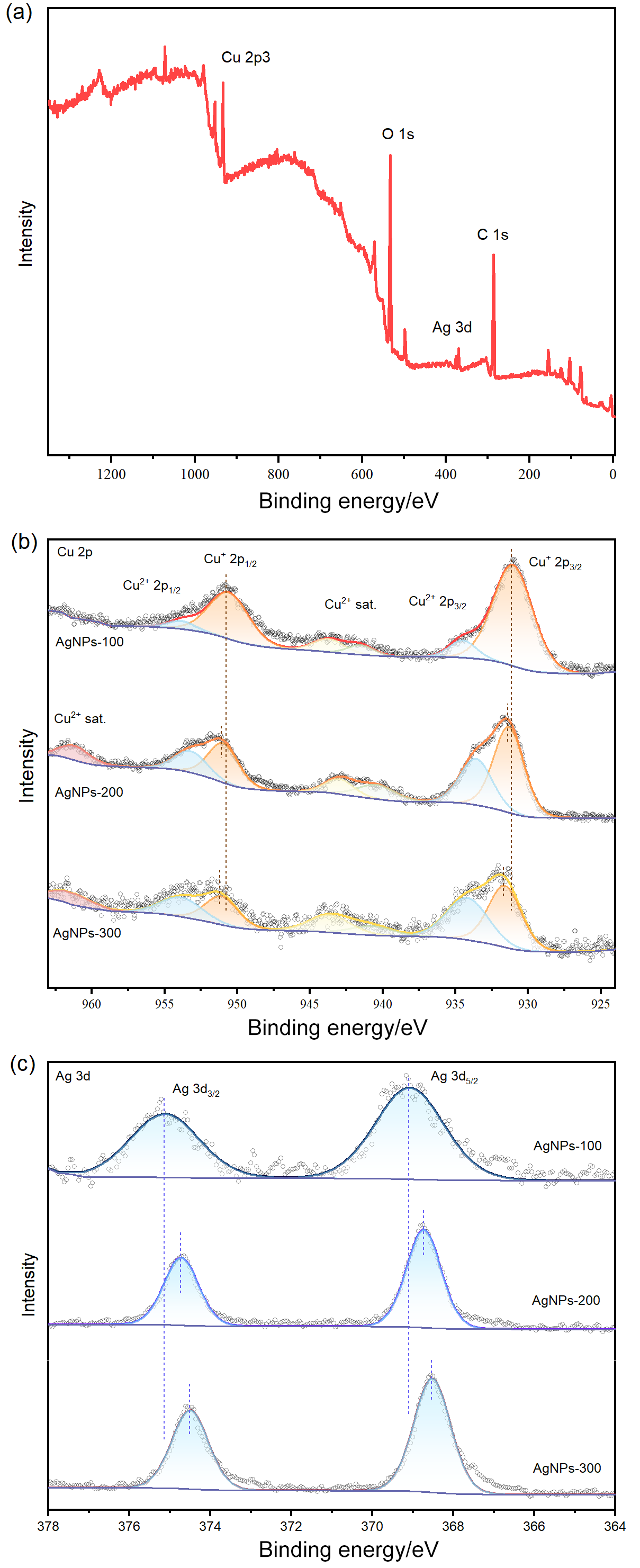

Figure 3. (a) XPS survey spectrum of FTO/CuSCN/Cu2O/AgNPs photocathode; Comparison of XPS spectra of FTO/CuSCN/Cu2O/AgNPs photocathodes with different AgNPs loadings: (b) fine spectrum of Cu 2p orbital; (c) fine spectrum of Ag 3d orbital

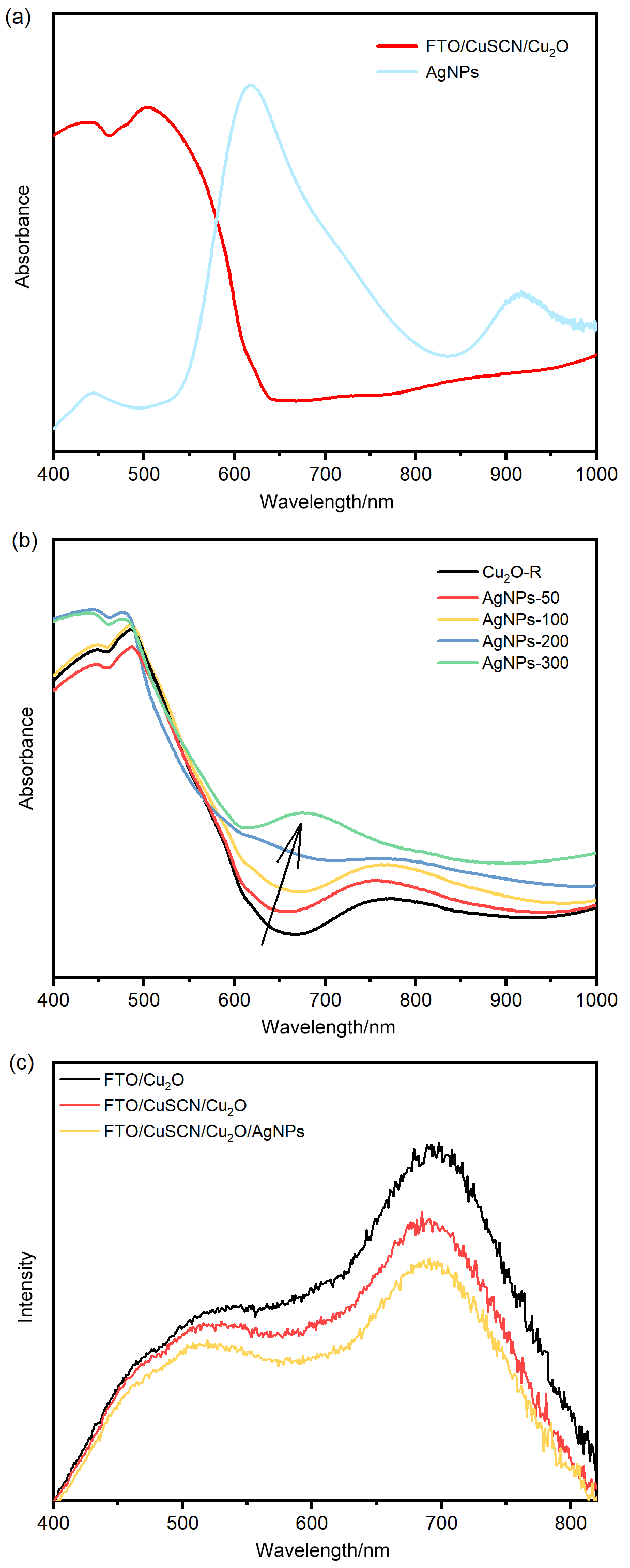

Figure 4. (a) Optical absorption characteristics of AgNPs solution; (b) optical absorption characteristics of composite photocathodes with different AgNPs loadings; (c) PL of the photocathode before and after modification with CuSCN improvement and AgNPs loading.

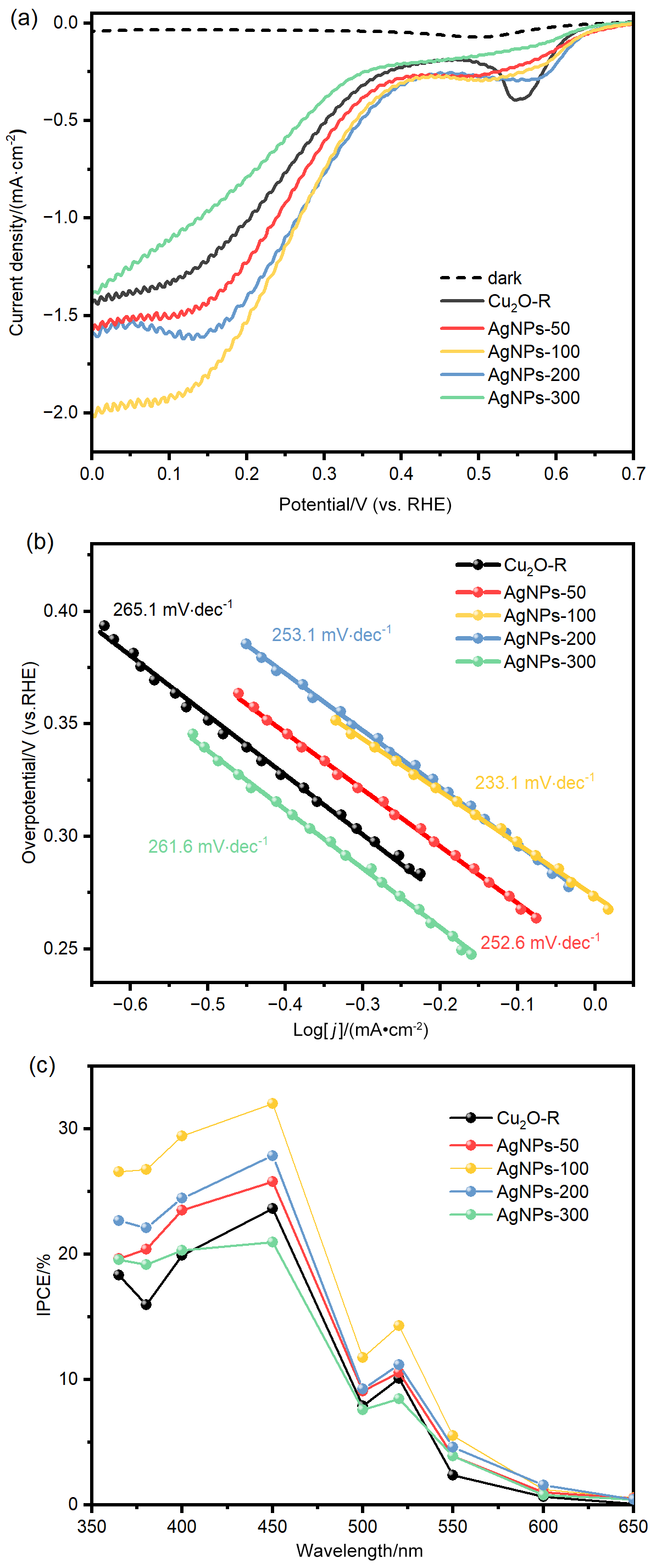

Figure 5. (a) LSV cur (a) LSV curves and (b) Tafel plots of FTO/CuSCN/ Cu2O/AgNPs with different loading; (c) IPCE spectra of FTO/CuSCN/ CuO/AgNPs with different loading amounts

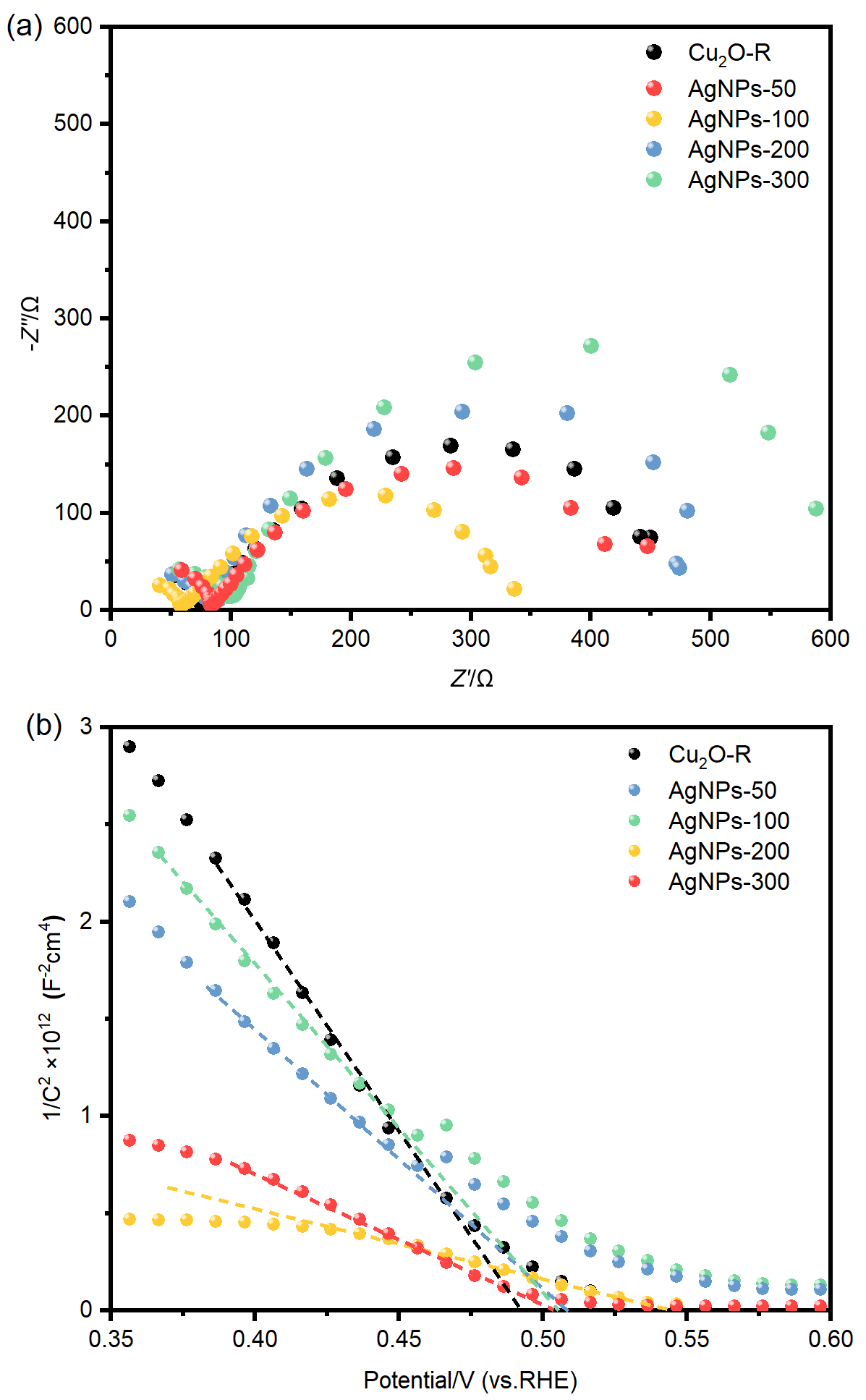

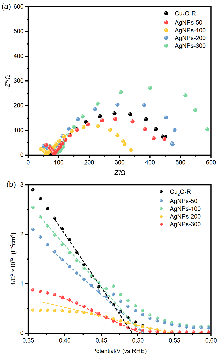

Figure 6. (a) Nyquist plots of FTO/CuSCN/Cu2O/AgNPs with different loading amounts; (b) Mott-Schottky plots of FTO/CuSCN/Cu2O/AgNPs with varying loading amounts

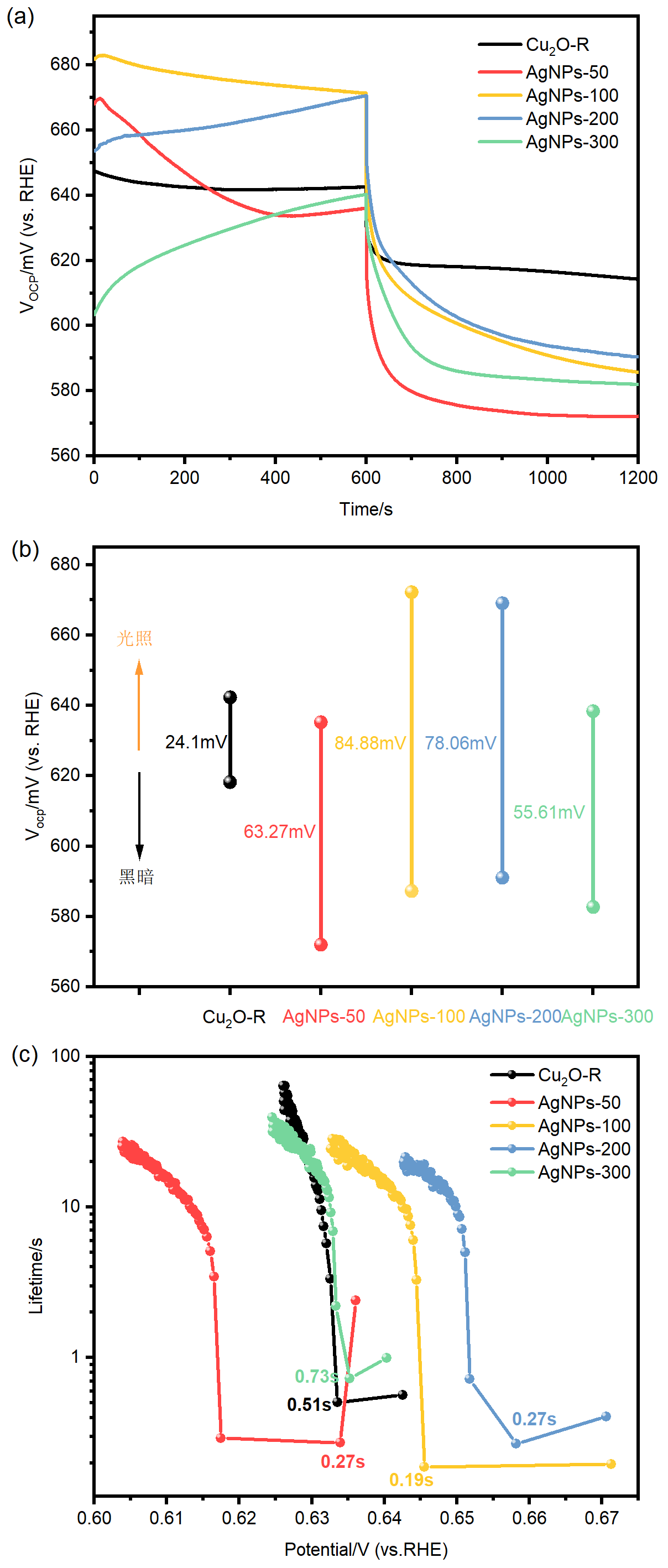

Figure 7. FTO/CuSCN/Cu2O/AgNPs with varied loading amounts: (a) OPCD kinetics; (b) Light/dark-switching OCP dynamics; (c) Potential-resolved carrier lifetime characteristics

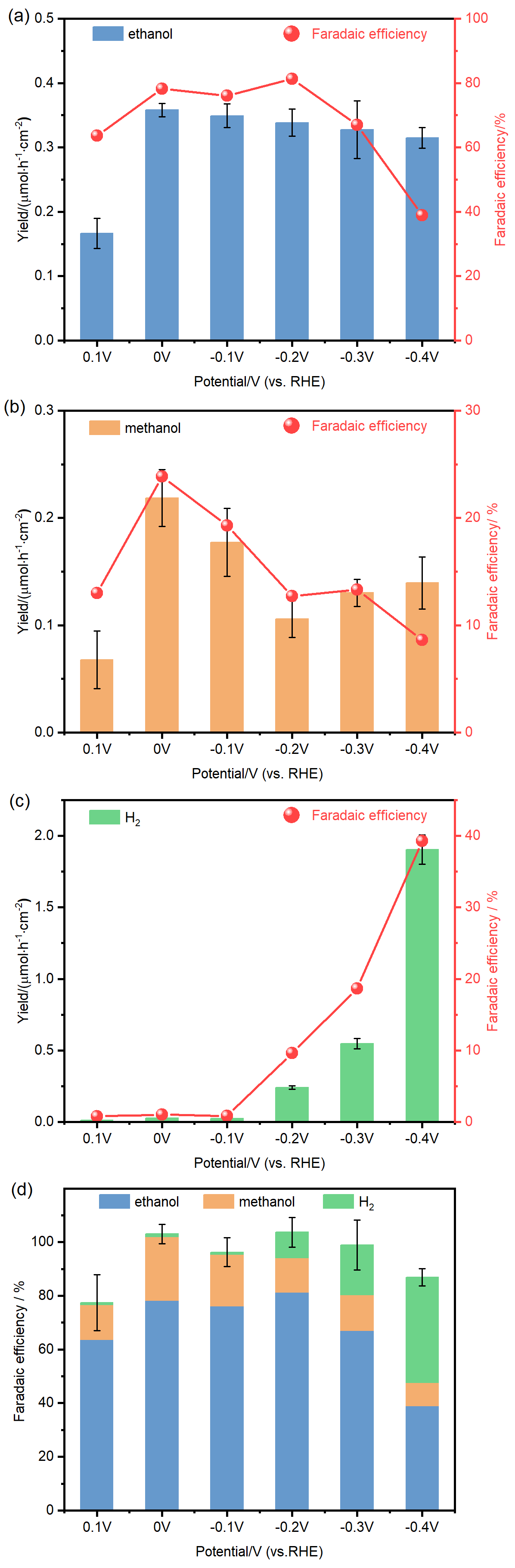

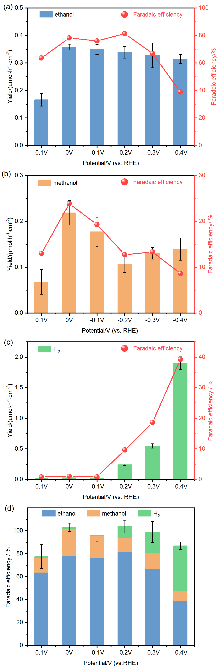

Figure 8. (a) Ethanol; (b) methanol; (c) hydrogen—plots of yield and Faraday efficiency versus potential; (d) total product Faraday efficiency versus potential

Figure 9. FDTD simulation of silver nanoparticles at different wavelengths

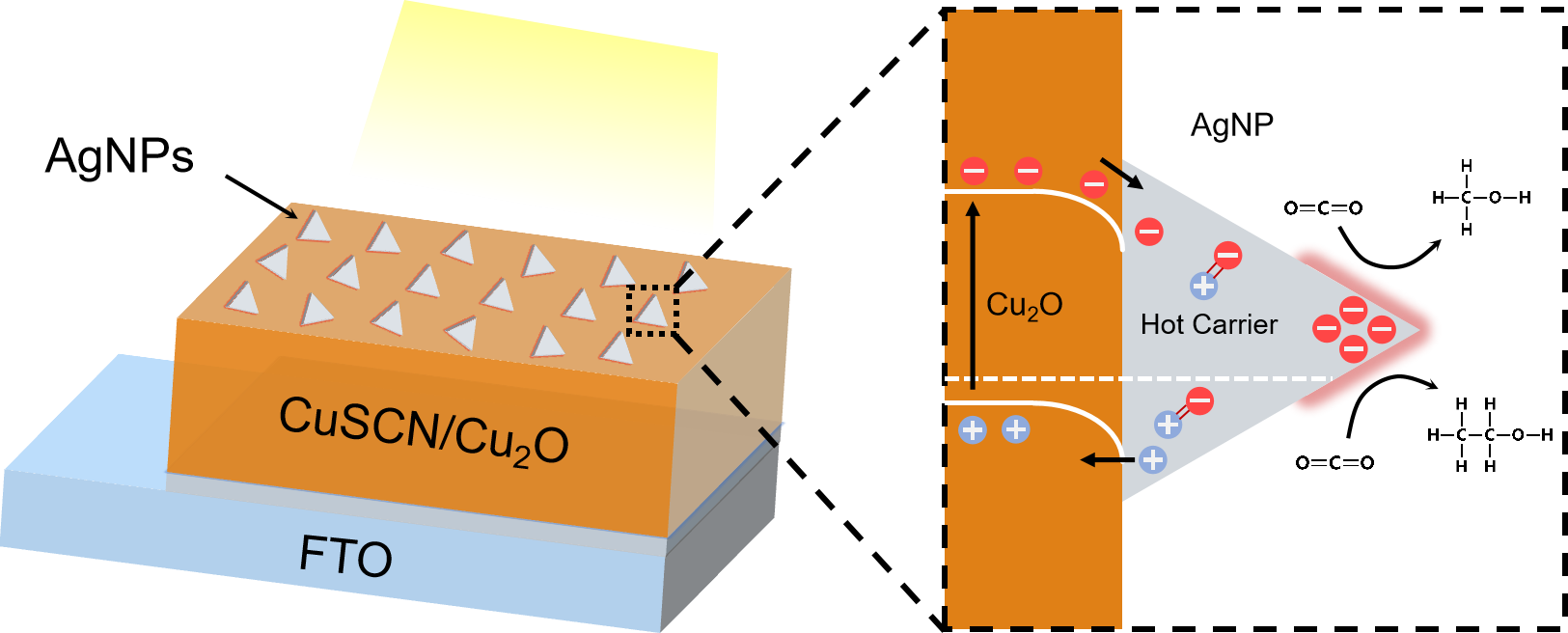

Figure 10. Schematic diagram of the mechanism of LSPR-enhanced photoelectrocatalytic CO2 reduction reaction

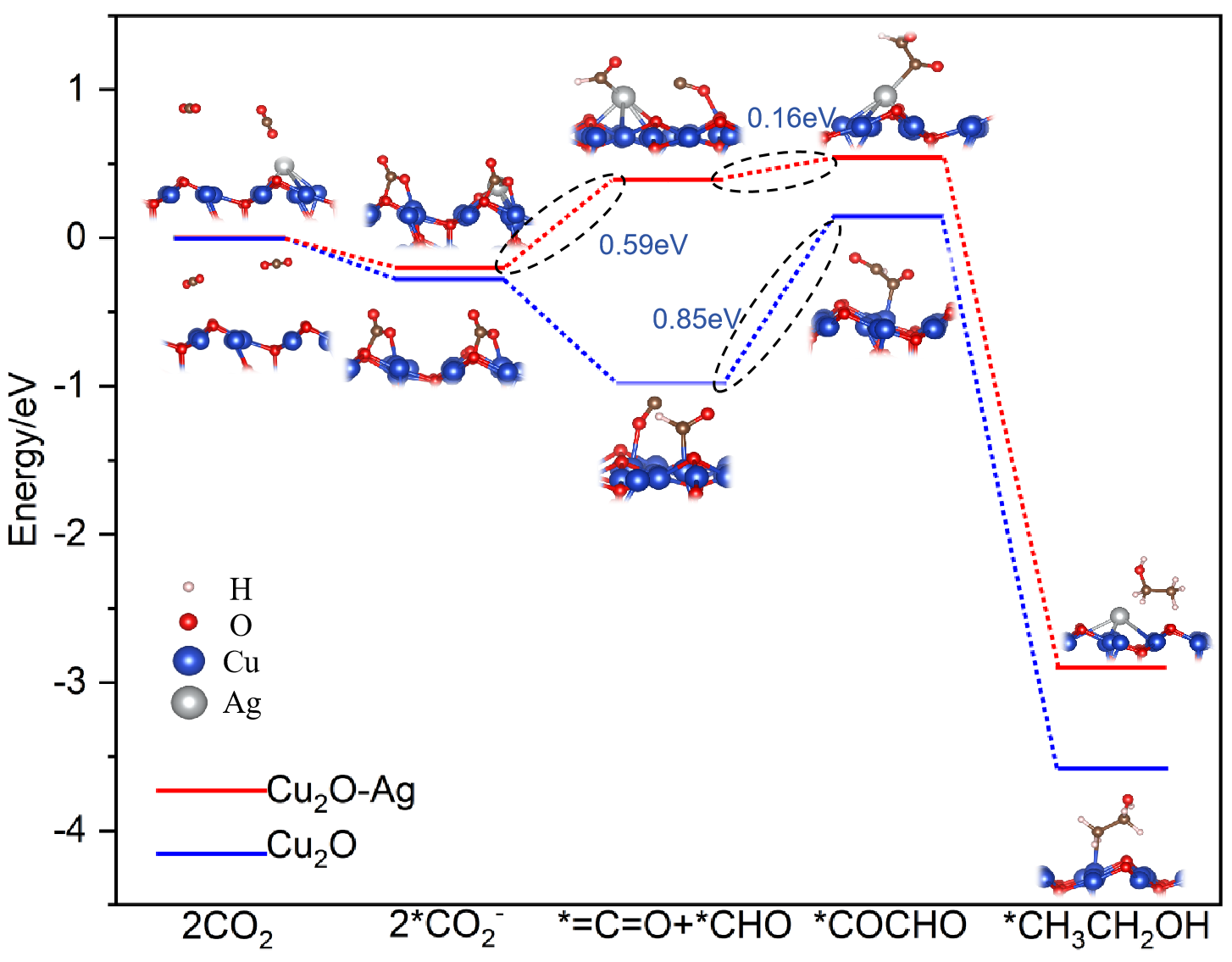

Figure 11. The calculated Gibbs free energy diagrams for CO2 reduction to CH3CH2OH on the surface of Cu2O and Cu2O-Ag and corresponding energetically favorable structures

References 36

[1]	Pan, Y.; Birdsey, R. A.; Phillips, O. L.; Houghton, R. A.; Fang, J.; Kauppi, P. E.; Keith, H.; Kurz, W. A.; Ito, A.; Lewis, S. L.; Nabuurs, G.-J.; Shvidenko, A.; Hashimoto, S.; Lerink, B.; Schepaschenko, D.; Castanho, A.; Murdiyarso, D. Nature 2024, 631, 563. doi: 10.1038/s41586-024-07602-x
[2]	Zheng, J.; Yang, X. CO-Operative Economy Science 2025, 16. (in Chinese)
	(郑建明, 杨欣, 合作经济与科技, 2025, 16.)
[3]	Hu, B.; Xiao, X.; Wang, P.; Shu, X.; Bian, M.; Wang, J.; Zhao, Z. Acta Chim. Sinica 2025, 83, 535. (in Chinese) doi: 10.6023/A24120390
	(胡博, 肖霞, 王鹏, 束小龙, 卞梦琪, 王健捷, 赵震, 化学学报, 2025, 83, 535.) doi: 10.6023/A24120390
[4]	Mao, Y.; Zhang, M.; Zhai, G.; Si, S.; Liu, D.; Song, K.; Liu, Y.; Wang, Z.; Zheng, Z.; Wang, P.; Dai, Y.; Cheng, H.; Huang, B. Adv. Sci. 2024, 11, 2401933. doi: 10.1002/advs.v11.28
[5]	She, X.; Wang, Y.; Xu, H.; Tsang, S. C. E.; Lau, S. P. Angew. Chem., Int. Ed. 2022, 61, e202211396. doi: 10.1002/anie.v61.49
[6]	Yao, G.; Liu, Q.; Zhao, Z. Prog. Chem. 2019, 31, 516. (in Chinese)
	(姚国英, 刘清路, 赵宗彦, 化学进展, 2019, 31, 516.) doi: 10.7536/PC180810
[7]	Lin, R.; Fan, D.; Berger, L. M.; Possmayer, T.; Zhou, Y.; Zhu, J.; Chen, X.; Luo, W.; Allmendinger, L.; Tittl, A.; Menezes, L. Maurin, G.; Yang, S.; Maier, S. A. Nano Res. 2025, 18, 94907042. doi: 10.26599/NR.2025.94907042
[8]	Kim, Y.; Creel, E. B.; Corson, E. R.; McCloskey, B. D.; Urban, J. J.; Kostecki, R. Adv. Energy Mater. 2018, 8, 1800363. doi: 10.1002/aenm.v8.22
[9]	Xu, C.; Zhang, X.; Zhu, M.-N.; Zhang, L.; Sui, P.-F.; Feng, R.; Zhang, Y.; Luo, J.-L. Appl. Catal., B 2021, 298, 120533. doi: 10.1016/j.apcatb.2021.120533
[10]	Kumari, G.; Zhang, X.; Devasia, D.; Heo, J.; Jain, P. K. ACS Nano 2018, 12, 8330. doi: 10.1021/acsnano.8b03617
[11]	Hu, G.; Wang, X.; Yuan, Z.; Xin, B.; Wu, L. Acta Chim. Sinica 2025, 83, 229. (in Chinese) doi: 10.6023/A24120364
	(胡国伟, 王晓欢, 原志鹏, 新巴雅尔, 乌力吉贺希格, 化学学报, 2025, 83, 229.)
[12]	Qin, C.; Chen, X.; Liang, R.; Jiang, N.; Zheng, Z.; Ye, Z.; Zhu, L. ACS Appl. Energy Mater. 2022, 5, 14410. doi: 10.1021/acsaem.2c02974
[13]	Wang, G.; Xu, J.; Jin, H.; Zhang, J.; Li, P.; Lu, F. Acta Chim. Sinica 2013, 71, 941. (in Chinese) doi: 10.6023/A12121073
	(王祜英, 徐金凤, 井华, 张军, 李培强, 路福绥, 化学学报, 2013, 71, 941.) doi: 10.6023/A12121073
[14]	Wang, R.; Wang, H.; Zhong, C.; Liu, Q.; Feng, R.; Zhao, Y.; Sun, M.; Yan, L.; Yan, T. J. Environ. Chem. Eng. 2023, 11, 109421. doi: 10.1016/j.jece.2023.109421
[15]	Yu, X.; Zhang, J.; Chen, Y.; Ji, Q.; Wei, Y.; Niu, J.; Yu, Z.; Yao, B. J. Environ. Chem. Eng. 2021, 9, 106161. doi: 10.1016/j.jece.2021.106161
[16]	Chen, L.; Sun, H.; Zhao, Y.; Zhang, Y.; Wang, Y.; Liu, Y.; Zhang, X.; Jiang, Y.; Hua, Z.; Yang, J. RSC Adv. 2017, 7, 16553. doi: 10.1039/C7RA01187C
[17]	Zhao, Y.; Sang, L.; Ren, Z. Sol. Energy Mater. Sol. Cells 2024, 267, 112728. doi: 10.1016/j.solmat.2024.112728
[18]	Kang, P. W.; Kim, G.-M.; Haaring, R.; Lee, J. W.; Jeon, S. S.; Lee, D. C.; Lee, H. ACS Energy Lett. 2023, 8, 4941. doi: 10.1021/acsenergylett.3c02000
[19]	Subha, N.; Mahalakshmi, M.; Myilsamy, M.; Neppolian, B.; Murugesan, V. Appl. Catal., A 2018, 553, 43. doi: 10.1016/j.apcata.2018.01.009
[20]	Choi, Y. M.; Lee, B. W.; Jung, M. S.; Han, H. S.; Kim, S. H.; Chen, K.; Kim, D. H.; Heinz, T. F.; Fan, S.; Lee, J.; Yi, G.-R.; Kim, J. K.; Park, J. H. Adv. Energy Mater. 2020, 10, 2000570. doi: 10.1002/aenm.v10.22
[21]	Zhan, C.; Yi, J.; Hu, S.; Zhang, X.-G.; Wu, D.-Y.; Tian, Z.-Q. Nat. Rev. Methods Primers 2023, 3, 12. doi: 10.1038/s43586-023-00195-1
[22]	Bagnall, A. J.; Ganguli, S.; Sekretareva, A. Angew. Chem., Int. Ed. 2024, 63, e202314352. doi: 10.1002/anie.v63.7
[23]	Divband, B.; Khatamian, M.; Eslamian, G. R. K.; Darbandi, M. Appl. Surf. Sci. 2013, 284, 80. doi: 10.1016/j.apsusc.2013.07.015
[24]	Jeong, S. Y.; Shin, H.-M.; Jo, Y.-R.; Kim, Y. J.; Kim, S.; Lee, W.-J.; Lee, G. J.; Song, J.; Moon, B. J.; Seo, S.; An, H.; Lee, S. H.; Song, Y. M.; Kim, B.-J.; Yoon, M.-H.; Lee, S. J. Phys. Chem. C 2018, 122, 7088. doi: 10.1021/acs.jpcc.8b00220
[25]	John, S.; Roy, S. C. Appl. Surf. Sci. 2020, 509, 144703. doi: 10.1016/j.apsusc.2019.144703
[26]	Ji, L.; Cheng, Y.; Qiang, Y.; Fu, X.; Jia, Y. ACS Appl. Mater. Interfaces 2025, 17, 22519. doi: 10.1021/acsami.4c21217
[27]	Hu, Z.; Chai, Y.; Zhang, H.; Sun, J.; Zhang, C.; Chen, Y.; Zhou, M. Appl. Catal., B 2025, 368, 125124. doi: 10.1016/j.apcatb.2025.125124
[28]	Liu, Y.; Zhang, Y.; Wang, Y.; Zhan, X.; Sui, P.; Luo, J.; Xu, C. Energy Environ. Mater. 2025, 8, e12868. doi: 10.1002/eem2.v8.3
[29]	Hu, H.; Liu, M.; Kong, Y.; Montiel, I. Z.; Hou, Y.; Rudnev, A. V.; Broekmann, P. ChemElectroChem 2022, 9, e202200615. doi: 10.1002/celc.v9.17
[30]	Vorlaufer, N.; Josten, J.; Hutzler, A.; Macauley, C. A.; Martić, N.; Weiser, M.; Schmid, G.; Mayrhofer, K. J. J.; Felfer, P. Nanoscale Adv. 2025, 7, 6005. doi: 10.1039/d5na00328h pmid: 40822877
[31]	Paracchino, A.; Brauer, J. C.; Moser, J.-E.; Thimsen, E.; Graetzel, M. J. Phys. Chem. C 2012, 116, 7341. doi: 10.1021/jp301176y
[32]	Wan, W.; Zhang, Q.; Wei, Y.; Cao, Y.; Hou, J.; Liu, C.; Hong, L.; Gao, H.; Chen, J.; Jing, H. Chem. Eng. J. 2023, 454, 140122. doi: 10.1016/j.cej.2022.140122
[33]	Wei, Y.; Wang, J.; He, C.; Hu, Z.; Zhuang, C.; Ullah, N.; Meng, F.; Zhang, Q.; Jing, H. Chem. Eng. J. 2025, 505, 159347. doi: 10.1016/j.cej.2025.159347
[34]	Wang, H.; Cui, X.; Guan, W.; Zheng, X.; Zhao, H.; Wang, Z.; Wang, Q.; Xue, T.; Liu, C.; Singh, D. J.; Zheng, W. Nanoscale 2014, 6, 7295. doi: 10.1039/C4NR01442A
[35]	Jin, R.; Charles Cao, Y.; Hao, E.; Métraux, G. S.; Schatz, G. C.; Mirkin, C. A. Nature 2003, 425, 487. doi: 10.1038/nature02020
[36]	Wang, H.; Zheng, X.; Chen, J.; Wang, D.; Wang, Q.; Xue, T.; Liu, C.; Jin, Z.; Cui, X.; Zheng, W. J. Phys. Chem. C 2012, 116, 24268. doi: 10.1021/jp304941b

银纳米颗粒等离激元促进光电催化二氧化碳制乙醇

Plasmonics of Ag Nanoparticles for Enhancing Photoelectrocatalytic CO₂ to Ethanol

RichHTML

PDF

Supporting Info.

Knowledge

Abstract

Cite this article

share this article

Fig. & Tab. 11

References 36

Related Articles 15

Recommended Articles

Metrics

Comments

[1]	Yingqi Wang, Jiayi Chang, Min Li, Hong Liang, Zhiheng Li, Wenfu Xie, Qiang Wang. Photoelectrocatalytic Urea Synthesis via co-Reduction of CO₂ and $NO_{2}^{-}$ over Metallic Surface Modified TiO₂ [J]. Acta Chimica Sinica, 2025, 83(3): 247-255.
[2]	Chenglu Luo, Meng Tian, Yufan Cui, Xingyi Ma. Applications and Progress of Localized Surface Plasmon Resonance in Detections with Single-molecule Sensitivity [J]. Acta Chimica Sinica, 2025, 83(1): 60-71.
[3]	Yinghui Wang, Yuhui Wang, Jiayao Xiong, Siqi Su, Mengke Hao, Simin Wei. The Fabrication of Silver Nanoparticles Using Puerarin and the Photothermal Sterilization and Diabetic Wound Healing Behavior [J]. Acta Chimica Sinica, 2024, 82(11): 1150-1161.
[4]	Zeyang Li, Yusen Yang, Min Wei. Structural Design and Performance of Electrocatalysts for Carbon Dioxide Reduction: A Review [J]. Acta Chimica Sinica, 2022, 80(2): 199-213.
[5]	Pan An, Qinghui Zhang, Zhuang Yang, Jiaxing Wu, Jiaying Zhang, Yajun Wang, Yuming Li, Guiyuan Jiang. Research Progress of Solar Hydrogen Production Technology under Double Carbon Target [J]. Acta Chimica Sinica, 2022, 80(12): 1629-1642.
[6]	Jinge Wang, Wei Zhou, Jiayi Li, Yani Ding, Jihui Gao. Recent Advances and Performance Enhancement Mechanisms of Pulsed Electrocatalysis [J]. Acta Chimica Sinica, 2022, 80(11): 1555-1568.
[7]	Yining Ma, Run Shi, Tierui Zhang. Research Progress on Triphase Interface Electrocatalytic Carbon Dioxide Reduction [J]. Acta Chimica Sinica, 2021, 79(4): 369-377.
[8]	Xu Shuya, Liu Zhihong, Zhang Huai, Yu Jinran. Preparation and Properties of Piezotronics Enhanced Plasmonic Photocatalytic Material by Ag/BaTiO₃ [J]. Acta Chim. Sinica, 2019, 77(5): 427-433.
[9]	Liu Shengwei, Zhao Jianjun, Xu Yiming. Larger Adsorption Effect of Fluoride than Phosphate on Phenol Degradation over the Irradiated Anatase TiO₂ and Pt/TiO₂ [J]. Acta Chim. Sinica, 2019, 77(4): 351-357.
[10]	Guo Xiaoru, Yin Yongguang, Tan Zhiqiang, Liu Jingfu, Jiang Guibin. Catalytic Oxidation of Arsenic in Water by Silver Nanoparticles [J]. Acta Chim. Sinica, 2018, 76(5): 387-392.
[11]	Li Ran, Lu Yanying, Lei Kaixiang, Li Fujun, Cheng Fangyi, Chen Jun. Resumption of the Discharged Li-AgVO₃ Primary Batteries for Rechargeable Li-O₂ Batteries [J]. Acta Chim. Sinica, 2017, 75(2): 199-205.
[12]	Su Yingying, Peng Tianhuan, Xing Feifei, Li Di, Fan Chunhai. Nanoplasmonic Biological Sensing and Imaging [J]. Acta Chim. Sinica, 2017, 75(11): 1036-1046.
[13]	Gu Tianhang, Shi Junming, Hua Yilong, Liu Jing, Wang Wei, Zhang Wei-xian. Enrichment of Silver from Water Using Nanoscale Zero-Valent Iron (nZVI) [J]. Acta Chim. Sinica, 2017, 75(10): 991-997.
[14]	Tian Leilei, Wei Xianyong, Zhuang Quanchao, Zong Zhimin, Sun Shigang. Fabrication and Lithium-Storage Performances of Graphene-Wrapped Cu₂₊₁O/Cu Composites [J]. Acta Chimica Sinica, 2013, 71(9): 1270-1274.
[15]	Li Aichang, Li Jianfei, Liu Yalu, Zhang Jianping, Zhao Liping, Lu Yanhong. Photoelectrocatalytic Properties and Reaction Mechanism of (Ni-Mo)/TiO₂ Film Electrode for Degradation of Rhodamine B at Negative Bias [J]. Acta Chimica Sinica, 2013, 71(05): 815-821.
