化学学报 上一篇    下一篇

研究论文

TEAOH界面修饰制备高效FAPbBr3钙钛矿太阳能电池

汪佳艳a, 郭焕焕*,b, 殷逍遥a, 张昀照a, 王威a, 赵晨瑞a, 陈洁a, 文洁a, 孙伟海*,a

  1. a华侨大学材料科学与工程学院 物理化学研究所,环境友好功能材料教育部工程研究中心,福建省光电功能材料重点实验室 厦门 361021;
    b邢台学院化学工程与生物技术学院 河北 邢台 054001
  • 投稿日期:2025-10-19
  • 基金资助:
    国家自然科学基金(No.61804058),华侨大学中青年教师科研提升资助计划(ZQN-706),河北省教育厅科学研究项目(BJK2022068),河北省引进留学人员资助项目(C20220306),邢台学院教育教学研究与实践项目(JGZ24002)

Preparation of High-Efficiency FAPbBr₃ Perovskite Solar Cells via TEAOH Interface Modification

Wang Jiayana, GUO Huanhuan*,b, Yin Xiaoyaoa, Zhang Yunzhaoa, Wang Weia, Zhao Chenruia, Chen Jiea, Wen Jiea, Sun Weihai*,a

  1. aSchool of Materials Science and Engineering, Huaqiao University, Engineering Research Center of Environment-FriendlyFunctional Materials, Ministry of Education. Fujian Key Laboratory of Photoelectric Functional Materials, Institute of Materials Physical Chemistry, Xiamen; School of Chemical Engineering and Biotechnology;
    bXingtai University, Xingtai, Hebei 054001, China
  • Received:2025-10-19
  • Contact: *E-mail: sunweihai@hqu.edu.cn
  • Supported by:
    National Natural Science Foundation of China (No. 61804058),Young and Middle-aged Teachers' Scientific Research Promotion Program of Huaqiao University (ZQN-706),Scientific Research Project of the Education Department of Hebei Province (BJK2022068),Overseas Returnees Support Program of Hebei Province (C20220306),Education and Teaching Research and Practice Project of Xingtai University (JGZ24002)

近些年来,甲脒溴化铅(FAPbBr3)钙钛矿太阳能电池凭借着较宽的带隙、出色的环境稳定性以及较高的开路电压,在叠层电池、半透明器件以及光催化等多个领域受到了广泛的关注。本研究采用两步溶液旋涂法制备FAPbBr3钙钛矿薄膜,在TiO2电子传输层上引入了四乙基氢氧化铵(TEAOH)作为界面修饰剂。通过系统的表征分析发现,TEAOH溶液浓度为4 mg·mL-1时达到最佳光伏性能,展现出显著的形貌改善,直接导致了薄膜质量的提升,缺陷态密度更低,从而抑制了载流子的复合。最终制备最优器件,开路电压(open-circuit voltage, VOC)为1.63 V,短路电流密度(short-circuit current density, JSC)为7.99 mA·cm-2,填充因子(fill factor, FF)为83.74%,光电转换效率(photoelectric conversion efficiency, PCE)达10.91%,并且目前该值是在无空穴传输层(hole transport layer, HTL)FAPbBr3器件里报道的最高值。

关键词: FAPbBr3钙钛矿太阳能电池, TiO2 / FAPbBr3层, TEAOH, 两步旋涂, 界面修饰

Formamidinium lead bromide (FAPbBr3) perovskite solar cells (PSCs) have attracted increasing attention for applications in tandem photovoltaics, semi-transparent devices, and photocatalysis owing to their wide bandgap, excellent thermal stability, and high open-circuit voltage. Compared with iodide-based perovskites, FAPbBr3 exhibits superior resistance to moisture, heat, and phase instability. However, its relatively wide bandgap limits the short-circuit current density in single-junction devices, and severe interfacial defect-induced nonradiative recombination at the electron transport layer (ETL)/perovskite interface further constrains device performance, especially in hole-transport-layer-free (HTL-free) architectures.
In this work, high-quality FAPbBr3 perovskite films were fabricated via a two-step solution spin-coating method, in which PbBr2 films were first deposited followed by the spin-coating of a formamidinium bromide (FABr) methanol solution. To regulate interfacial charge transport and suppress defect-assisted recombination, tetraethylammonium hydroxide (TEAOH) was introduced as an interfacial modifier at the TiO2/FAPbBr3 interface. By systematically tuning the concentration of the TEAOH aqueous solution, the influence of interfacial modification on perovskite crystallization, defect passivation, and carrier dynamics was comprehensively investigated.
Morphological characterization by scanning electron microscopy revealed that an optimal TEAOH concentration of 4 mg·mL-1 significantly improved the film quality, featuring enlarged grain size, reduced grain boundary density, and a more compact and uniform morphology. X-ray diffraction analysis confirmed enhanced crystallinity and improved phase purity of the FAPbBr3 films after TEAOH modification. Meanwhile, ultraviolet-visible absorption spectra demonstrated strengthened light-harvesting capability, which can be attributed to the improved microstructure and reduced optical scattering losses.

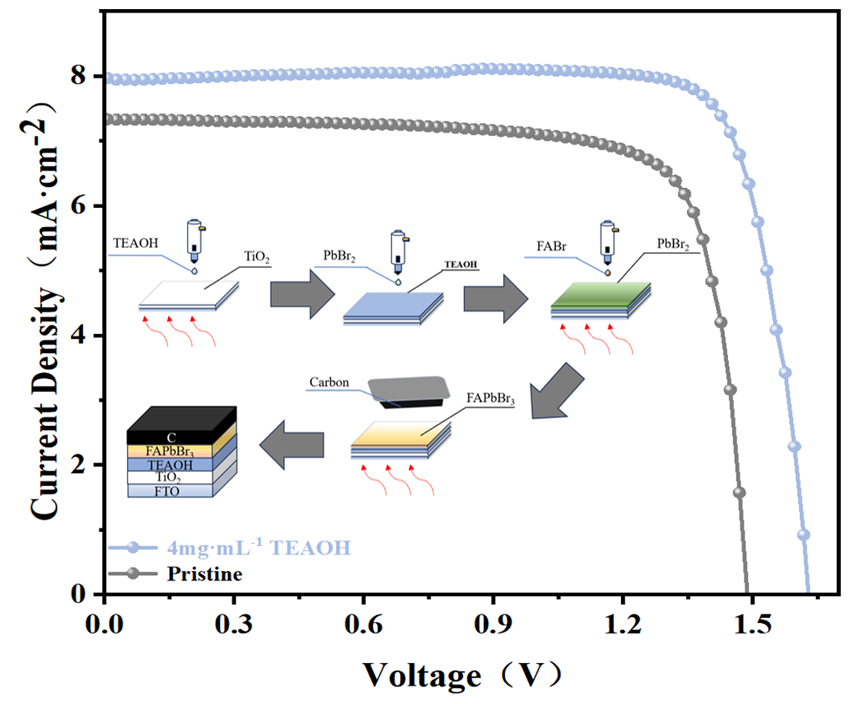

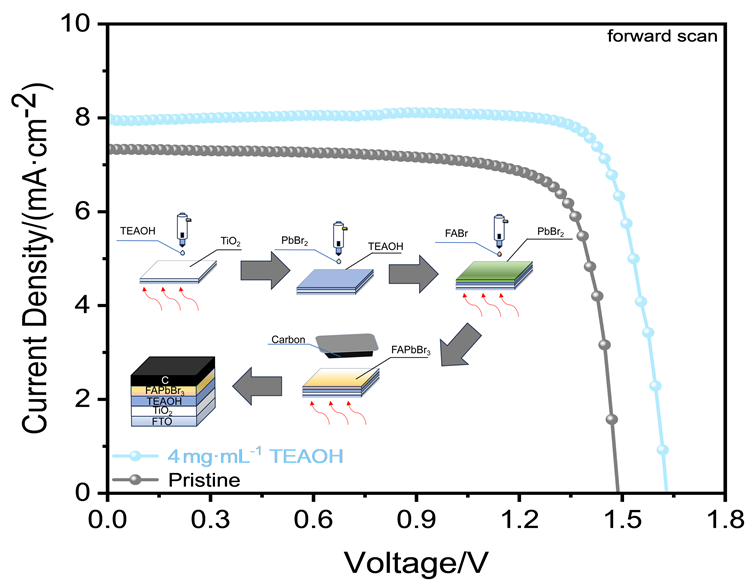

Electrical and spectroscopic analyses, including steady-state and time-resolved photoluminescence, space-charge-limited current measurements, electrochemical impedance spectroscopy, and transient optoelectronic characterization, consistently revealed that TEAOH modification effectively reduced interfacial defect density, suppressed nonradiative recombination, and promoted faster electron extraction at the TiO2/FAPbBr3 interface. As a result, the optimized HTL-free FAPbBr3 PSC delivered a high open-circuit voltage of 1.63 V, a short-circuit current density of 7.99 mA·cm-2, and a fill factor of 83.74%, achieving a power conversion efficiency of 10.91%, which represents the highest reported efficiency for HTL-free FAPbBr3-based PSCs to date. In addition, the modified devices exhibited stable current output under continuous illumination.
This study demonstrates that TEAOH interfacial engineering is a simple yet highly effective strategy to simultaneously improve crystallization quality, interfacial charge transport, and photovoltaic performance in wide-bandgap perovskite solar cells, offering valuable insights for the development of efficient and stable perovskite optoelectronic devices.

Key words: FAPbBr3 perovskite solar cells, TiO2/FAPbBr3 interface, tetraethylammonium hydroxide, two-step spin-coating, interfacial modification
